#include <math.h>
#include <time.h>

Include dependency graph for inline.h:

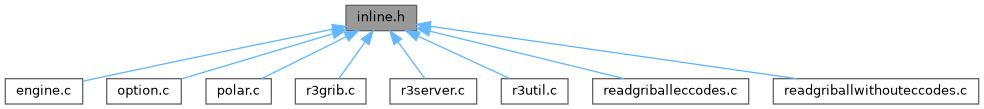

This graph shows which files directly or indirectly include this file:

Functions
static bool	isSea (char *isSeaArray, double lat, double lon)
	this file contains small inlines functions to be included in source files

static bool	isSeaTolerant (char *isSeaArray, double lat, double lon)
	say if point is in sea

static double	lonCanonize (double lon)
	return lon on ]-180, 180 ] interval

static double	lonNormalize (double lon, bool anteMeridian)
	if antemeridian -180 < lon < 360.

static bool	isInZone (double lat, double lon, Zone *zone)
	true if P (lat, lon) is within the zone

static double	fTwd (double u, double v)
	true wind direction

static double	fTws (double u, double v)
	true wind speed.

static double	fTwa (double heading, double twd)
	return TWA between -180 and 180 note : tribord amure if twa < 0

static void	fAwaAws (double twa, double tws, double sog, double awa, double aws)
	return AWA and AWS Apparent Wind Angle and Speed

static double	interpolate (double x, double x0, double x1, double fx0, double fx1)
	return fx : linear interpolation

static double	givry (double lat1, double lon1, double lat2, double lon2)
	return givry correction to apply to direct or loxodromic cap to get orthodromic cap

static double	directCap (double lat1, double lon1, double lat2, double lon2)
	return loxodromic cap from origin to destination

static double	orthoCap (double lat1, double lon1, double lat2, double lon2)
	return initial orthodromic cap from origin to destination equivalent to : return directCap (lat1, lon1, lat2, lon2) + givry (lat1, lon1, lat2, lon2);

static double	orthoCap2 (double lat1, double lon1, double lat2, double lon2)
	return initial orthodromic cap from origin to destination, no givry correction

static double	loxoDist (double lat1, double lon1, double lat2, double lon2)
	return loxodromic distance in nautical miles from origin to destination

static double	orthoDist (double lat1, double lon1, double lat2, double lon2)
	return orthodromic distance in nautical miles from origin to destination

static double	orthoDist2 (double lat1, double lon1, double lat2, double lon2)
	return orthodomic distance in nautical miles from origin to destinationi, Haversine formula time consuming

static double	findPolar (double twa, double w, const PolMat mat, const PolMat sailMat, int *sail)
	find in polar boat speed or wave coeff

static int	binarySearchTwa (const PolMat *mat, double val)
	dichotomic search on column 0 (TWA), using rows [1 .

static int	binarySearchW (const double *row0, int nCol, double val)
	dichotomic search on row 0 (wind speed), using columns [1 .

static double	findPolar1 (double twa, double w, const PolMat mat, const PolMat sailMat, int *sail)
	find in polar boat speed or wave coeff and sail number if sailMat != NULL

static double	findPolar2 (double twa, double w, const PolMat mat, const PolMat sailMat, int *sail)
	find in polar boat speed or wave coeff and sail number if sailMat != NULL

static double	maxSpeedInPolarAt (double tws, const PolMat *mat)
	return max speed of boat at tws for all twa

static void	orthoFindInterPoint (double lat1, double lon1, double lat2, double lon2, double d_nm, double latR, double lonR)
	Compute the intermediate point on the great circle from P1 to P2.

static bool	isDay (double t, long dataDate, long dataTime, double lat, double lon)
	true if day light, false if night

Function Documentation

◆ binarySearchTwa()

static int binarySearchTwa	(	const PolMat *	mat,
		double	val
	)

inlinestatic

dichotomic search on column 0 (TWA), using rows [1 .

. nLine-1]

Definition at line 211 of file inline.h.

References PolMat::nLine, and PolMat::t.

Referenced by findPolar2().

Here is the caller graph for this function:

◆ binarySearchW()

static int binarySearchW	(	const double *	row0,
		int	nCol,
		double	val
	)

inlinestatic

dichotomic search on row 0 (wind speed), using columns [1 .

. nCol-1]

Definition at line 226 of file inline.h.

Referenced by findPolar1(), findPolar2(), and maxSpeedInPolarAt().

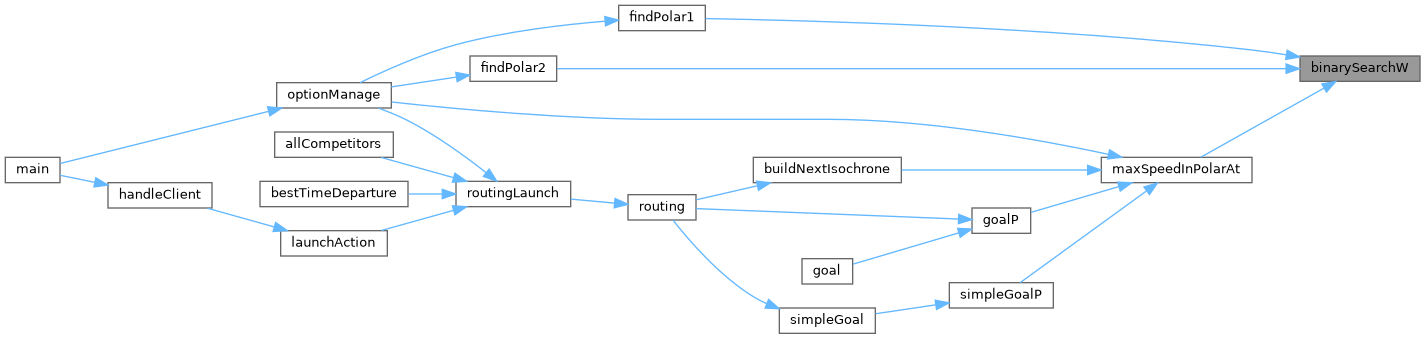

Here is the caller graph for this function:

◆ directCap()

static double directCap	(	double	lat1,
		double	lon1,
		double	lat2,
		double	lon2
	)

inlinestatic

return loxodromic cap from origin to destination

Definition at line 89 of file inline.h.

References DEG_TO_RAD, and RAD_TO_DEG.

Referenced by routing(), and statRoute().

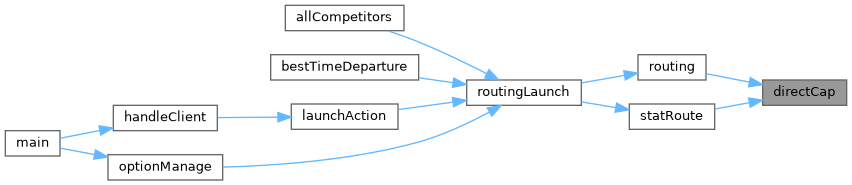

Here is the caller graph for this function:

◆ fAwaAws()

static void fAwaAws	(	double	twa,
		double	tws,
		double	sog,
		double *	awa,
		double *	aws
	)

inlinestatic

return AWA and AWS Apparent Wind Angle and Speed

Definition at line 70 of file inline.h.

References DEG_TO_RAD, and RAD_TO_DEG.

Referenced by routeToStr().

Here is the caller graph for this function:

◆ findPolar()

static double findPolar	(	double	twa,
		double	w,
		const PolMat *	mat,
		const PolMat *	sailMat,
		int *	sail
	)

inlinestatic

find in polar boat speed or wave coeff

Definition at line 174 of file inline.h.

References interpolate(), PolMat::nCol, PolMat::nLine, and PolMat::t.

Referenced by bestVmg(), bestVmgBack(), buildNextIsochrone(), goalP(), optionManage(), and simpleGoalP().

Here is the call graph for this function:

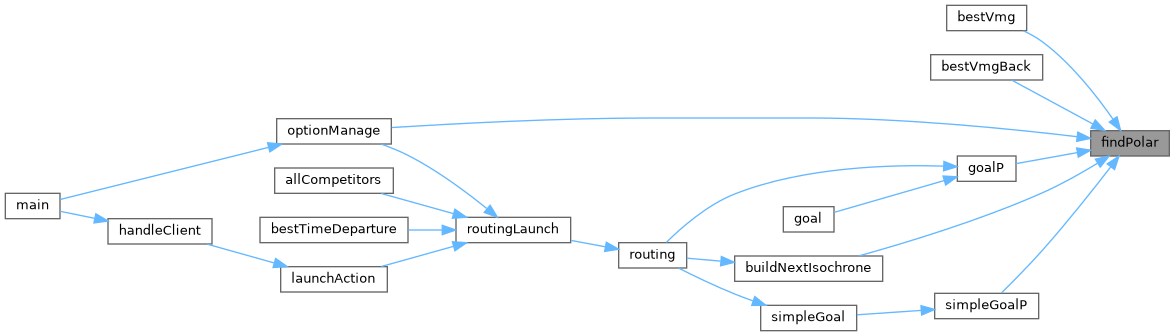

Here is the caller graph for this function:

◆ findPolar1()

static double findPolar1	(	double	twa,
		double	w,
		const PolMat *	mat,
		const PolMat *	sailMat,
		int *	sail
	)

inlinestatic

find in polar boat speed or wave coeff and sail number if sailMat != NULL

Definition at line 241 of file inline.h.

References binarySearchW(), interpolate(), PolMat::nCol, PolMat::nLine, and PolMat::t.

Referenced by optionManage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findPolar2()

static double findPolar2	(	double	twa,
		double	w,
		const PolMat *	mat,
		const PolMat *	sailMat,
		int *	sail
	)

inlinestatic

find in polar boat speed or wave coeff and sail number if sailMat != NULL

Definition at line 277 of file inline.h.

References binarySearchTwa(), binarySearchW(), interpolate(), PolMat::nCol, PolMat::nLine, and PolMat::t.

Referenced by optionManage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fTwa()

static double fTwa	(	double	heading,
		double	twd
	)

inlinestatic

return TWA between -180 and 180 note : tribord amure if twa < 0

Definition at line 64 of file inline.h.

Referenced by buildNextIsochrone(), goalP(), optionManage(), routeToJson(), routeToStr(), and simpleGoalP().

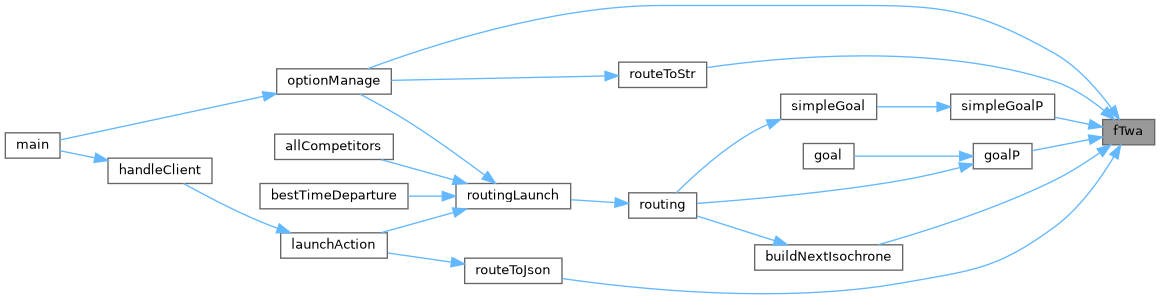

Here is the caller graph for this function:

◆ fTwd()

static double fTwd	(	double	u,
		double	v
	)

inlinestatic

true wind direction

Definition at line 52 of file inline.h.

References RAD_TO_DEG.

Referenced by findCurrentGrib(), and findWindGrib().

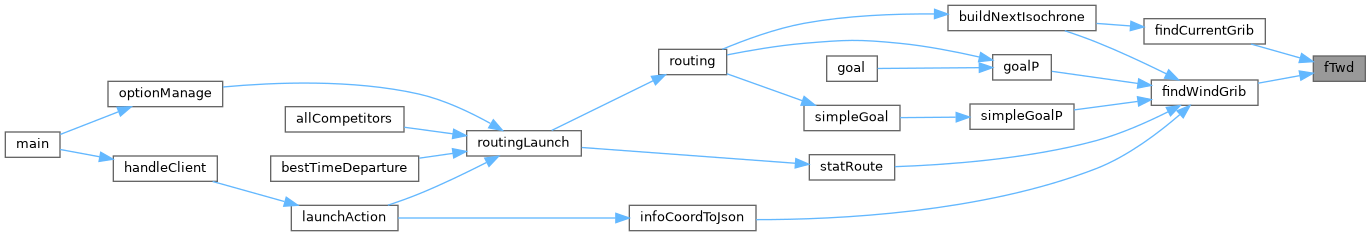

Here is the caller graph for this function:

◆ fTws()

static double fTws	(	double	u,
		double	v
	)

inlinestatic

true wind speed.

cf Pythagore

Definition at line 58 of file inline.h.

References MS_TO_KN.

Referenced by findCurrentGrib(), findWindGrib(), fPenalty(), fPointLoss(), and fTimeToRecupOnePoint().

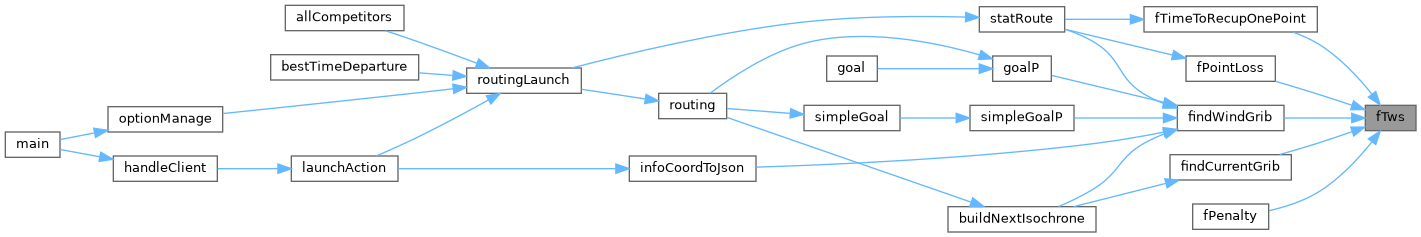

Here is the caller graph for this function:

◆ givry()

static double givry	(	double	lat1,
		double	lon1,
		double	lat2,
		double	lon2
	)

inlinestatic

return givry correction to apply to direct or loxodromic cap to get orthodromic cap

Definition at line 84 of file inline.h.

References DEG_TO_RAD.

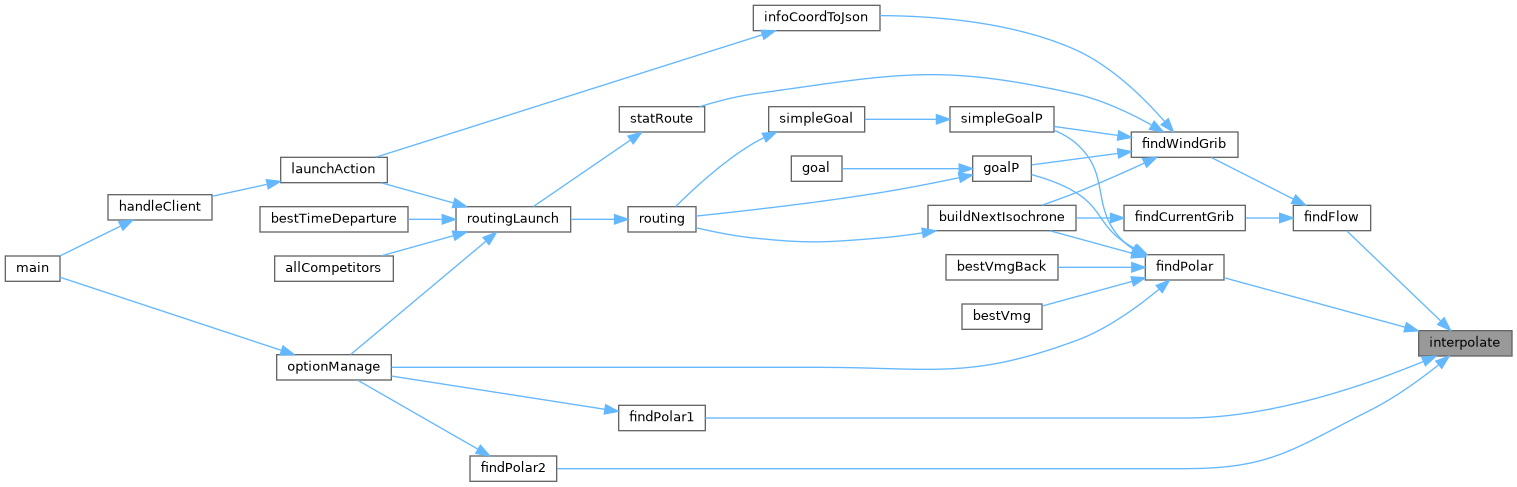

◆ interpolate()

static double interpolate	(	double	x,
		double	x0,
		double	x1,
		double	fx0,
		double	fx1
	)

inlinestatic

return fx : linear interpolation

Definition at line 78 of file inline.h.

Referenced by findFlow(), findPolar(), findPolar1(), and findPolar2().

Here is the caller graph for this function:

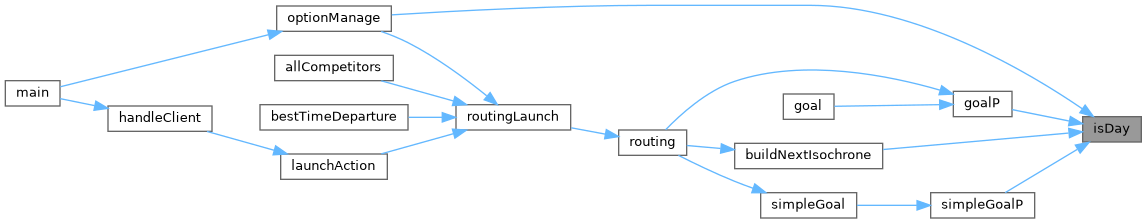

◆ isDay()

static bool isDay	(	double	t,
		long	dataDate,
		long	dataTime,
		double	lat,
		double	lon
	)

inlinestatic

true if day light, false if night

t : hours since beginning of GRIB (UTC)
dataDate : YYYYMMDD (UTC)
dataTime : HHMM (UTC) Approximation:
- local solar hour = GRIB_UTC_time + t + lon/15
- day if localHour in [6, 18]
- polar caps: rough month-based rule

Definition at line 421 of file inline.h.

References lonCanonize().

Referenced by buildNextIsochrone(), goalP(), optionManage(), and simpleGoalP().

Here is the call graph for this function:

Here is the caller graph for this function:

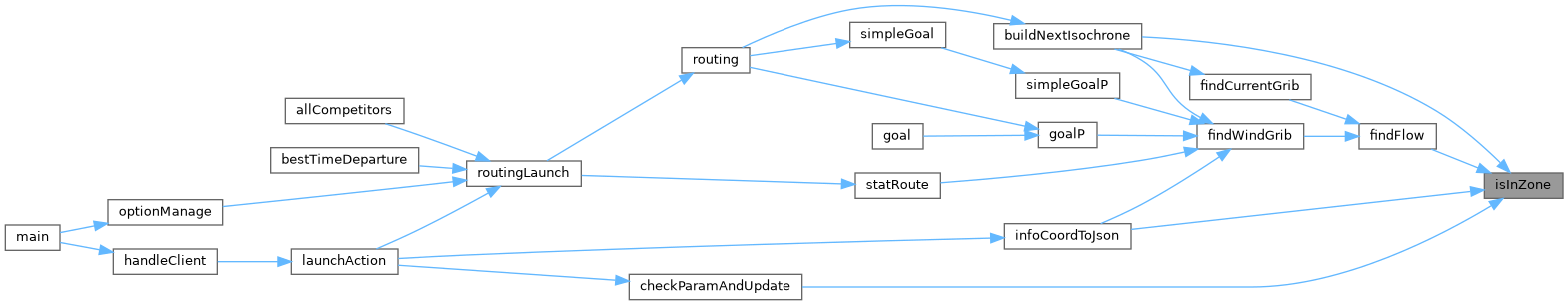

◆ isInZone()

static bool isInZone	(	double	lat,
		double	lon,
		Zone *	zone
	)

inlinestatic

true if P (lat, lon) is within the zone

Definition at line 47 of file inline.h.

References Zone::latMax, Zone::latMin, Zone::lonLeft, Zone::lonRight, and zone.

Referenced by buildNextIsochrone(), checkParamAndUpdate(), findFlow(), and infoCoordToJson().

Here is the caller graph for this function:

◆ isSea()

static bool isSea	(	char *	isSeaArray,
		double	lat,
		double	lon
	)

inlinestatic

this file contains small inlines functions to be included in source files

say if point is in sea

Definition at line 8 of file inline.h.

Referenced by infoCoordToJson(), optionManage(), segmentOverSea(), and simpleGoal().

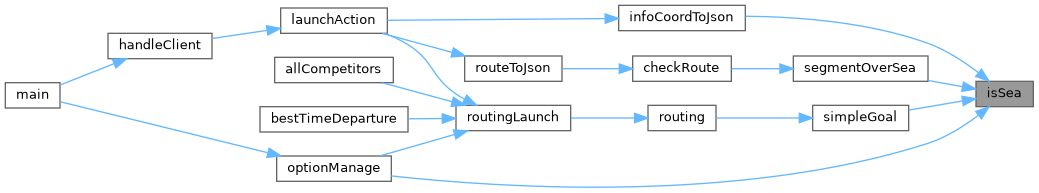

Here is the caller graph for this function:

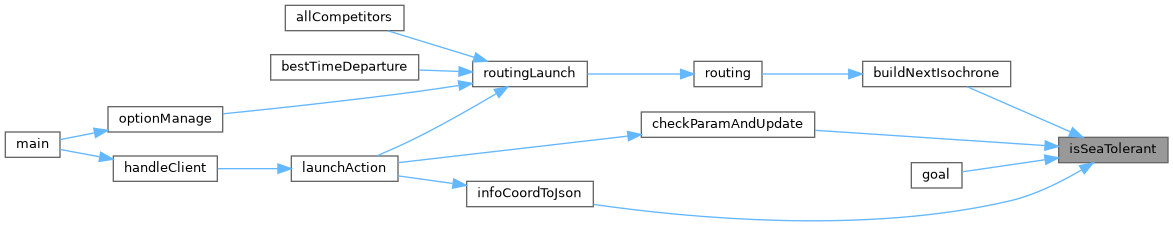

◆ isSeaTolerant()

static bool isSeaTolerant	(	char *	isSeaArray,
		double	lat,
		double	lon
	)

inlinestatic

say if point is in sea

Definition at line 16 of file inline.h.

Referenced by buildNextIsochrone(), checkParamAndUpdate(), goal(), and infoCoordToJson().

Here is the caller graph for this function:

◆ lonCanonize()

static double lonCanonize ( double lon )

inlinestatic

return lon on ]-180, 180 ] interval

Definition at line 29 of file inline.h.

Referenced by consistentGrib(), isDay(), lonNormalize(), orthoFindInterPoint(), readGribAll(), readGribParameters(), and storeRoute().

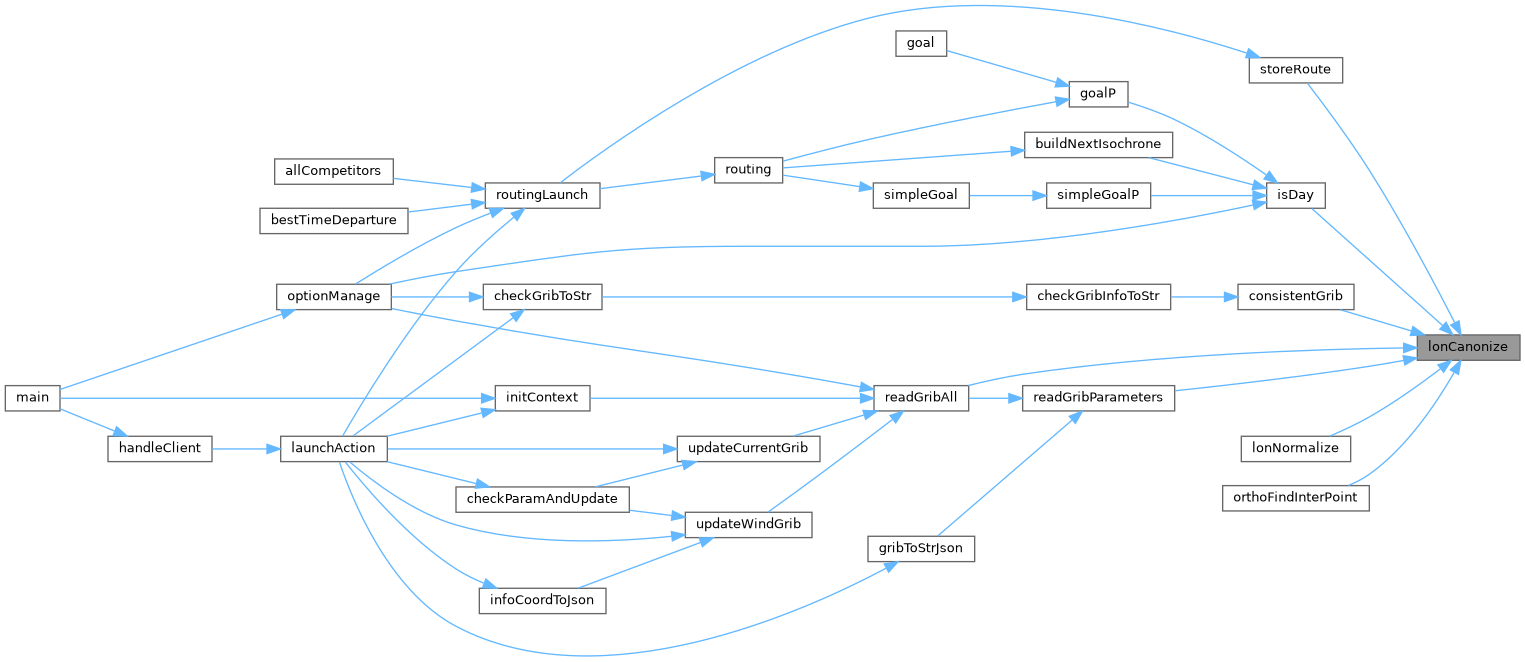

Here is the caller graph for this function:

◆ lonNormalize()

static double lonNormalize	(	double	lon,
		bool	anteMeridian
	)

inlinestatic

if antemeridian -180 < lon < 360.

Normal case : -180 < lon <= 180

Definition at line 40 of file inline.h.

References lonCanonize().

Here is the call graph for this function:

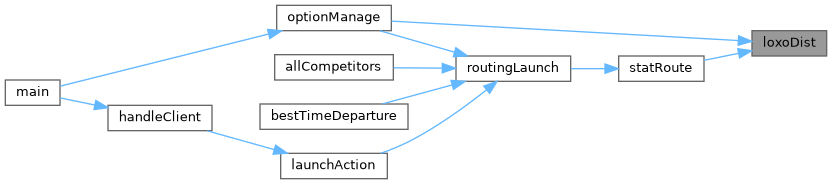

◆ loxoDist()

static double loxoDist	(	double	lat1,
		double	lon1,
		double	lat2,
		double	lon2
	)

inlinestatic

return loxodromic distance in nautical miles from origin to destination

Definition at line 119 of file inline.h.

References DEG_TO_RAD, EARTH_RADIUS, and G_PI.

Referenced by optionManage(), and statRoute().

Here is the caller graph for this function:

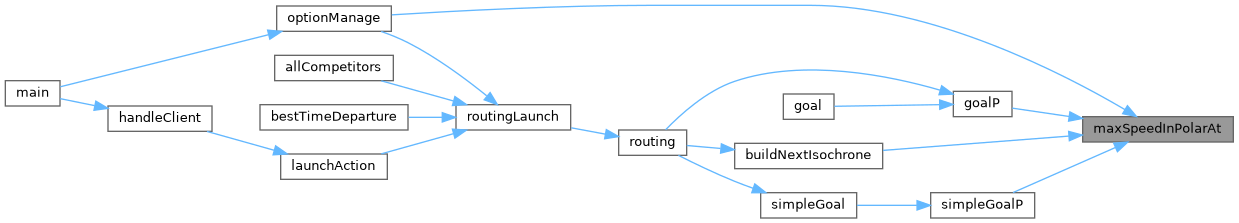

◆ maxSpeedInPolarAt()

static double maxSpeedInPolarAt	(	double	tws,
		const PolMat *	mat
	)

inlinestatic

return max speed of boat at tws for all twa

Definition at line 308 of file inline.h.

References binarySearchW(), PolMat::nCol, PolMat::nLine, and PolMat::t.

Referenced by buildNextIsochrone(), goalP(), optionManage(), and simpleGoalP().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ orthoCap()

static double orthoCap	(	double	lat1,
		double	lon1,
		double	lat2,
		double	lon2
	)

inlinestatic

return initial orthodromic cap from origin to destination equivalent to : return directCap (lat1, lon1, lat2, lon2) + givry (lat1, lon1, lat2, lon2);

Definition at line 96 of file inline.h.

References DEG_TO_RAD, and RAD_TO_DEG.

Referenced by buildNextIsochrone(), forwardSectorOptimize(), optionManage(), and statRoute().

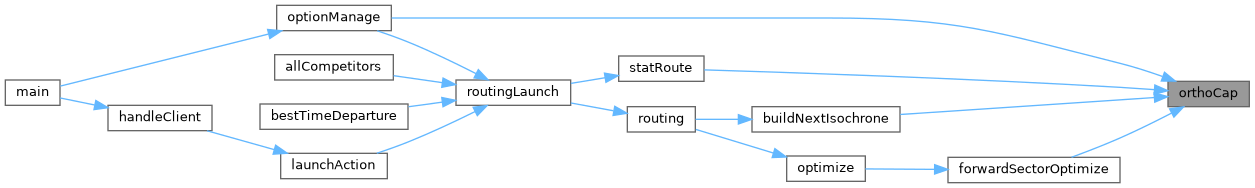

Here is the caller graph for this function:

◆ orthoCap2()

static double orthoCap2	(	double	lat1,
		double	lon1,
		double	lat2,
		double	lon2
	)

inlinestatic

return initial orthodromic cap from origin to destination, no givry correction

Definition at line 108 of file inline.h.

References DEG_TO_RAD, and RAD_TO_DEG.

Referenced by optionManage().

Here is the caller graph for this function:

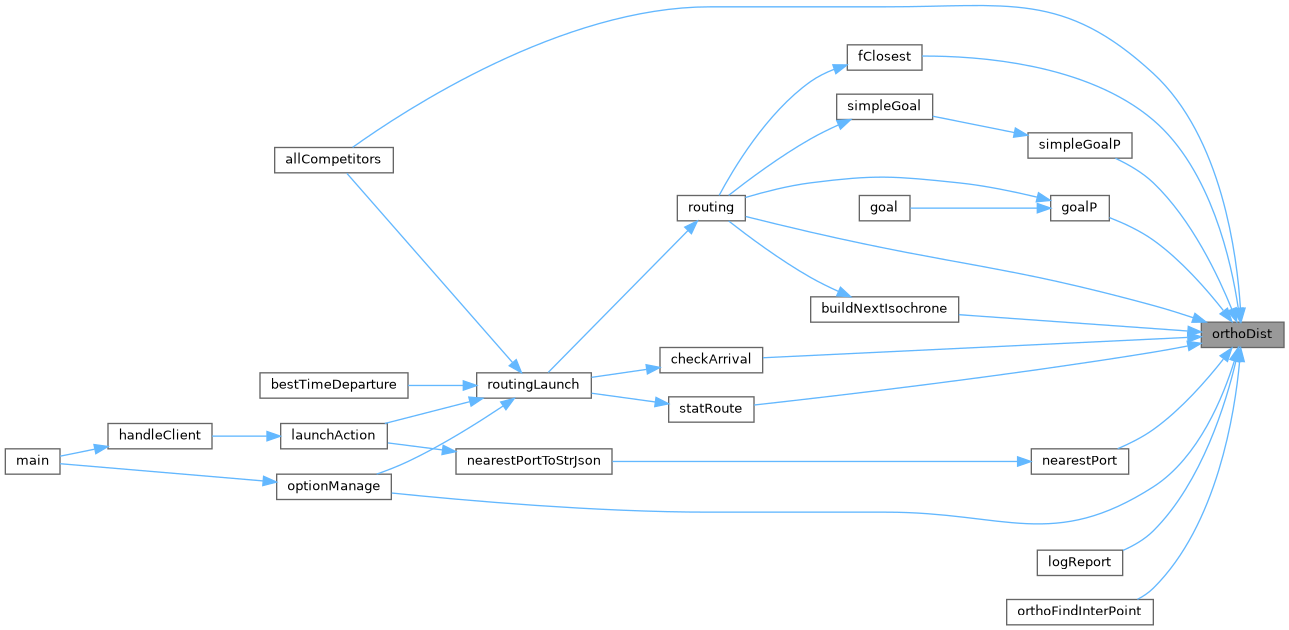

◆ orthoDist()

static double orthoDist	(	double	lat1,
		double	lon1,
		double	lat2,
		double	lon2
	)

inlinestatic

return orthodromic distance in nautical miles from origin to destination

Definition at line 147 of file inline.h.

References CLAMP, DEG_TO_RAD, and RAD_TO_DEG.

Referenced by allCompetitors(), buildNextIsochrone(), checkArrival(), fClosest(), goalP(), logReport(), nearestPort(), optionManage(), orthoFindInterPoint(), routing(), simpleGoalP(), and statRoute().

Here is the caller graph for this function:

◆ orthoDist2()

static double orthoDist2	(	double	lat1,
		double	lon1,
		double	lat2,
		double	lon2
	)

inlinestatic

return orthodomic distance in nautical miles from origin to destinationi, Haversine formula time consuming

Definition at line 161 of file inline.h.

References DEG_TO_RAD, and RAD_TO_DEG.

Referenced by optionManage().

Here is the caller graph for this function:

◆ orthoFindInterPoint()

static void orthoFindInterPoint	(	double	lat1,
		double	lon1,
		double	lat2,
		double	lon2,
		double	d_nm,
		double *	latR,
		double *	lonR
	)

inlinestatic

Compute the intermediate point on the great circle from P1 to P2.

This function returns the point Pr (latR, lonR) lying on the orthodromic (great-circle) route from P1 (lat1, lon1) to P2 (lat2, lon2), at a distance d_nm (nautical miles) from P1.

Latitudes and longitudes are in degrees. Distance d_nm is in nautical miles.

The result (latR, lonR) is given in degrees.

Edge cases:

If P1 and P2 are (almost) identical, Pr = P1.
If d_nm <= 0, Pr = P1.
If d_nm >= orthodromic distance P1->P2, Pr = P2.

Definition at line 343 of file inline.h.

References DEG_TO_RAD, lonCanonize(), orthoDist(), and RAD_TO_DEG.

Here is the call graph for this function:

Functions

Function Documentation

◆ binarySearchTwa()

◆ binarySearchW()

◆ directCap()

◆ fAwaAws()

◆ findPolar()

◆ findPolar1()

◆ findPolar2()

◆ fTwa()

◆ fTwd()

◆ fTws()

◆ givry()

◆ interpolate()

◆ isDay()

◆ isInZone()

◆ isSea()

◆ isSeaTolerant()

◆ lonCanonize()

◆ lonNormalize()

◆ loxoDist()

◆ maxSpeedInPolarAt()

◆ orthoCap()

◆ orthoCap2()

◆ orthoDist()

◆ orthoDist2()

◆ orthoFindInterPoint()
