#include <float.h>
#include <ctype.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stdbool.h>
#include <sys/stat.h>
#include <dirent.h>
#include <unistd.h>
#include <time.h>
#include <math.h>
#include <locale.h>
#include "glibwrapper.h"
#include "r3types.h"
#include "inline.h"

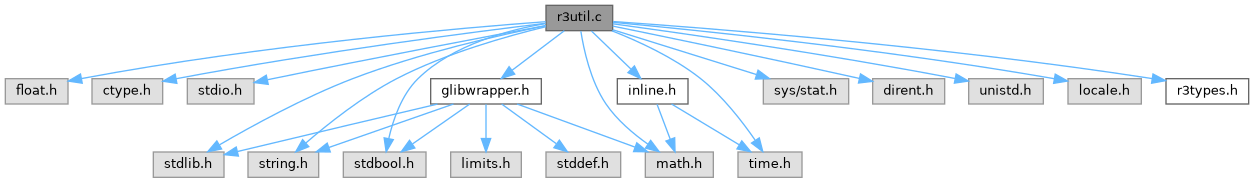

Include dependency graph for r3util.c:

Macros
#define	MAX_N_SHIP_TYPE 2
	compilation: gcc -c r3util.c

Functions
char *	fSailName (int val, char *str, size_t maxLen)
	return the name of the sail

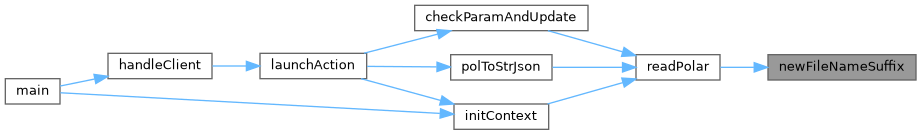

char *	newFileNameSuffix (const char fileName, const char suffix, char *newFileName, size_t maxLen)
	replace former suffix (after last dot) by suffix example : "pol/bibi.toto.csv" with suffix "sailpol" will give: "pol/bibi.toto.sailpol"

bool	isEmpty (const char *str)
	return true if str is empty

char *	formatThousandSep (char *buffer, size_t maxLen, long value)
	format big number with thousand sep.

bool	hasSlash (const char *name)
	true if name terminates with slash

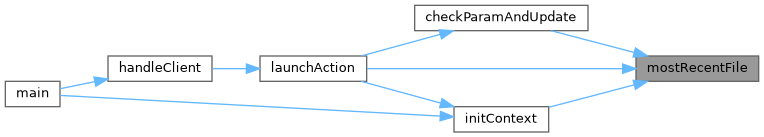

bool	mostRecentFile (const char directory, const char pattern0, const char pattern1, char name, size_t maxLen)
	select most recent file in "directory" that contains "pattern0" and "pattern1" in name return true if found with name of selected file

bool	isNumber (const char *name)
	true if name contains a number

double	getCoord (const char *str, double minLimit, double maxLimit)
	translate str in double for latitude longitude

char *	buildRootName (const char fileName, char rootName, size_t maxLen)
	Build root name if not already a root name.

char *	epochToStr (time_t t, bool seconds, char *str, size_t maxLen)
	convert epoch time to string with or without seconds

double	offsetLocalUTC (void)
	return offset Local UTC in seconds

char *	gribDateTimeToStr (long date, long time, char *str, size_t maxLen)
	return str representing grib date

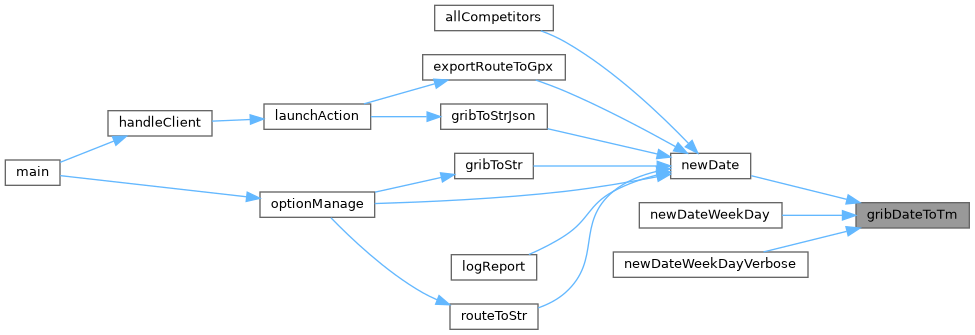

struct tm	gribDateToTm (long intDate, double nHours)
	return tm struct equivalent to date hours found in grib (UTC time) struct tm gribDateToTm (long intDate, double nHours) { struct tm tm0 = {0}; tm0.tm_year = (intDate / 10000) - 1900; tm0.tm_mon = ((intDate % 10000) / 100) - 1; tm0.tm_mday = intDate % 100; tm0.tm_isdst = -1; const int totalMinutes = (int)(nHours * 60); tm0.tm_min += totalMinutes; // adjust tm0 struct (manage day, mon year overflow) mktime (&tm0); return tm0; }

static bool	bissextile (int year)
	retrurn true if year is bissextile

static bool	getYMDHM (long dataDate, double nHours, int yyyy, int mm, int dd, int hh, int *min)
	return year, month (1..12), day, hour, minutes from Grib dataDate and hours

char *	otherNewDate (long dataDate, double nHours, char *res, size_t maxLen)
	return date and time using ISO notation after adding myTime (hours) to the Date

char *	newDate (long intDate, double nHours, char *res, size_t maxLen)
	return date and time using ISO notation after adding myTime (hours) to the Date

char *	newDateWeekDay (long intDate, double nHours, char *res, size_t maxLen)
	return date and time using week day after adding myTime (hours) to the Date

char *	newDateWeekDayVerbose (long intDate, double nHours, char *res, size_t maxLen)
	return date and time using week day after adding myTime (hours) to the Date

time_t	gribDateTimeToEpoch (long date, long hhmm)
	convert long date/time from GRIB to time_t (UTC, via timegm)

double	getDepartureTimeInHour (struct tm *startUtc)
	calculate difference in hours between departure time in UTC and time 0

char *	durationToStr (double duration, char *res, size_t maxLen)
	convert hours in string with days, hours, minutes

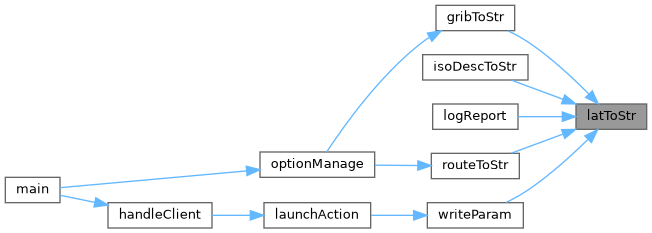

char *	latToStr (double lat, int type, char *str, size_t maxLen)
	convert lat to str according to type

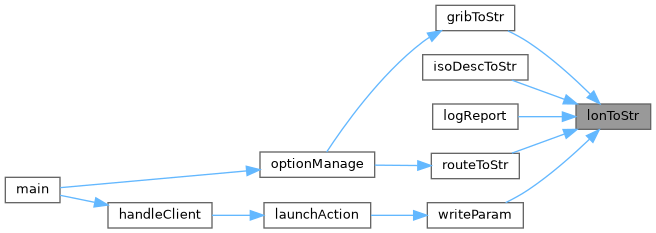

char *	lonToStr (double lon, int type, char *str, size_t maxLen)
	convert lon to str according to type

bool	readIsSea (const char *fileName)
	read issea file and fill table tIsSea

static bool	isInPolygon (double lat, double lon, const MyPolygon *po)
	fill str with polygon information

static bool	isInForbidArea (double lat, double lon)
	return true if p is in forbid area

void	updateIsSeaWithForbiddenAreas (void)
	complement according to forbidden areas

static void	forbidZoneAdd (char *line, int n)
	read forbid zone format [[lat, lon], [lat, lon] ...] ...

bool	readParam (const char *fileName, bool initDisp)
	read parameter file and build par struct

static void	fprintfNoNull (FILE f, const char fmt, const char *param)

static void	fprintfNoZero (FILE f, const char fmt, int param)

bool	writeParam (const char *fileName, bool header, bool password, bool yaml)
	write parameter file from struct par header or not, password or not yaml style or not

double	fPenalty (int shipIndex, int type, double tws, double energy, double *cStamina, bool fullPack)
	for virtual Regatta.

double	fPointLoss (int shipIndex, int type, double tws, bool fullPack)
	for virtual Regatta.

double	fTimeToRecupOnePoint (double tws)
	for virtual Regatta.

char *	paramToStrJson (Par par, char out, size_t maxLen)
	Return JSON formatted subset of parameters into 'out'.

int	nearestPort (double lat, double lon, const char fileName, char res, size_t maxLen)
	return id and name of nearest port found in file fileName from lat, lon.

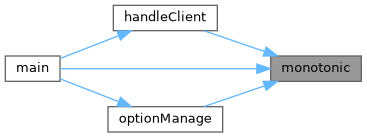

double	monotonic (void)
	return seconds with decimals

char *	readTextFile (const char fileName, char errMessage, size_t maxLen)
	read all text file in buffer.

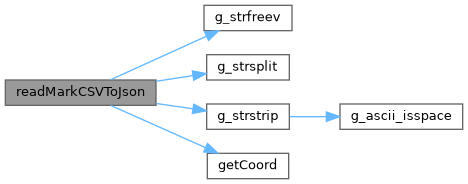

bool	readMarkCSVToJson (const char fileName, char out, size_t maxLen)
	read CSV file marks (Virtual Regatta) if check then polarCheck

void	normalizeSpaces (char *s)
	replace multiple spaces by just one

Variables
struct {

char name [MAX_SIZE_NAME]

double cShip

double tMin [3]

double tMax [3]

}	shipParam [MAX_N_SHIP_TYPE]

MyPolygon	forbidZones [MAX_N_FORBID_ZONE]
	forbid ones is a set of polygons

const struct MeteoElmt	meteoTab [N_METEO_ADMIN] = {{7, "Weather service US"}, {78, "DWD Germany"}, {85, "Meteo France"}, {98,"ECMWF European"}}
	dictionnary of meteo services

const size_t	sailNameSize = 7
	sail attributes

const char *	sailName [] = {"C0", "HG", "Jib", "LG", "LJ", "Spi", "SS"}

const char *	colorStr [] = {"green", "purple", "gray", "blue", "yellow", "orange", "red"}

WayPointList	wayPoints
	list of wayPoint

CompetitorsList	competitors
	list of competitors

PolMat	polMat
	polar matrix description

PolMat	sailPolMat
	polar matrix for sails

PolMat	wavePolMat
	polar matrix for waves

Par	par
	parameter

char *	tIsSea = NULL
	table describing if sea or earth

Zone	zone
	geographic zone covered by grib file

Zone	currentZone

Macro Definition Documentation

◆ MAX_N_SHIP_TYPE

#define MAX_N_SHIP_TYPE 2

compilation: gcc -c r3util.c

Definition at line 2 of file r3util.c.

Function Documentation

◆ bissextile()

static bool bissextile ( int year )

inlinestatic

retrurn true if year is bissextile

Definition at line 323 of file r3util.c.

Referenced by getYMDHM().

Here is the caller graph for this function:

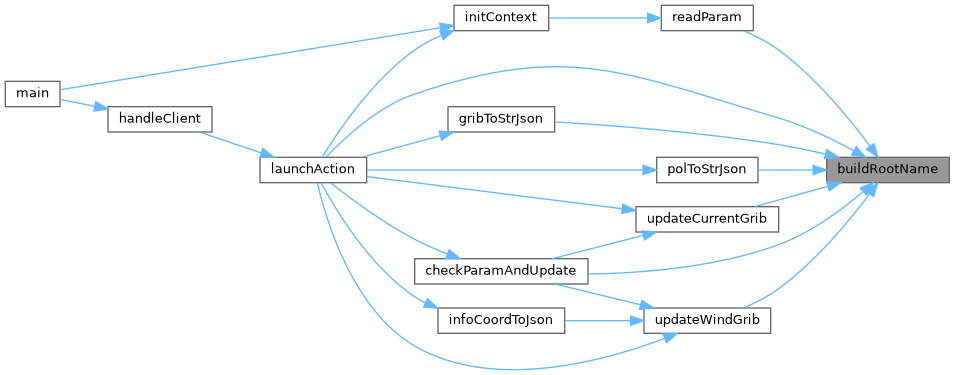

◆ buildRootName()

char * buildRootName	(	const char *	fileName,
		char *	rootName,
		size_t	maxLen
	)

Build root name if not already a root name.

Combines the working directory with the file name if it is not absolute. Stores the result in rootName and ensures it does not exceed maxLen.

Parameters

fileName	The name of the file (absolute or relative).
rootName	The buffer to store the resulting root name.
maxLen	The maximum length of the buffer `rootName`.

Returns: A pointer to rootName, or NULL on error.

abolute path POSIX : begin with '/'

Definition at line 230 of file r3util.c.

References hasSlash(), par, WORKING_DIR, and Par::workingDir.

Referenced by checkParamAndUpdate(), gribToStrJson(), launchAction(), polToStrJson(), readParam(), updateCurrentGrib(), and updateWindGrib().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ durationToStr()

char * durationToStr	(	double	duration,
		char *	res,
		size_t	maxLen
	)

convert hours in string with days, hours, minutes

Definition at line 429 of file r3util.c.

Referenced by routeToStr().

Here is the caller graph for this function:

◆ epochToStr()

char * epochToStr	(	time_t	t,
		bool	seconds,
		char *	str,
		size_t	maxLen
	)

convert epoch time to string with or without seconds

functions defined in r3util.c

Definition at line 247 of file r3util.c.

Referenced by optionManage().

Here is the caller graph for this function:

◆ forbidZoneAdd()

static void forbidZoneAdd	(	char *	line,
		int	n
	)

static

read forbid zone format [[lat, lon], [lat, lon] ...] ...

Definition at line 548 of file r3util.c.

References forbidZones, getCoord(), Point::lat, Point::lon, MAX_LAT, MAX_LON, MAX_SIZE_FORBID_ZONE, MIN_LAT, MIN_LON, MyPolygon::n, and MyPolygon::points.

Referenced by readParam().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ formatThousandSep()

char * formatThousandSep	(	char *	buffer,
		size_t	maxLen,
		long	value
	)

format big number with thousand sep.

Example 1000000 formated as 1 000 000

Definition at line 104 of file r3util.c.

References MAX_SIZE_LINE.

Referenced by testToJson().

Here is the caller graph for this function:

◆ fPenalty()

double fPenalty	(	int	shipIndex,
		int	type,
		double	tws,
		double	energy,
		double *	cStamina,
		bool	fullPack
	)

for virtual Regatta.

return penalty in seconds for manoeuvre type. Depend on tws and energy. Give also sTamina coefficient

Definition at line 984 of file r3util.c.

References cShip, fTws(), G_PI, shipParam, tMax, and tMin.

Here is the call graph for this function:

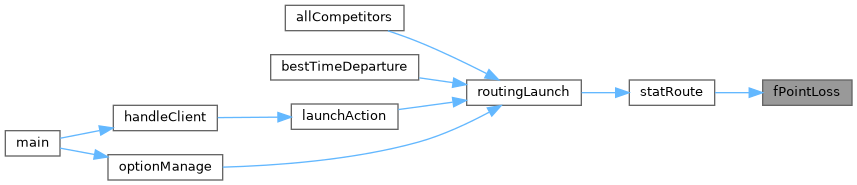

◆ fPointLoss()

double fPointLoss	(	int	shipIndex,
		int	type,
		double	tws,
		bool	fullPack
	)

for virtual Regatta.

return point loss with manoeuvre types. Depends on tws and fullPack

Definition at line 1002 of file r3util.c.

References cShip, fTws(), and shipParam.

Referenced by statRoute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fprintfNoNull()

static void fprintfNoNull	(	FILE *	f,
		const char *	fmt,
		const char *	param
	)

static

Definition at line 815 of file r3util.c.

Referenced by writeParam().

Here is the caller graph for this function:

◆ fprintfNoZero()

static void fprintfNoZero	(	FILE *	f,
		const char *	fmt,
		int	param
	)

static

Definition at line 819 of file r3util.c.

Referenced by writeParam().

Here is the caller graph for this function:

◆ fSailName()

char * fSailName	(	int	val,
		char *	str,
		size_t	maxLen
	)

return the name of the sail

Definition at line 68 of file r3util.c.

References g_strlcpy, PolMat::name, PolMat::nSail, polMat, and PolMat::tSail.

Referenced by routeToJson(), and routeToStr().

Here is the caller graph for this function:

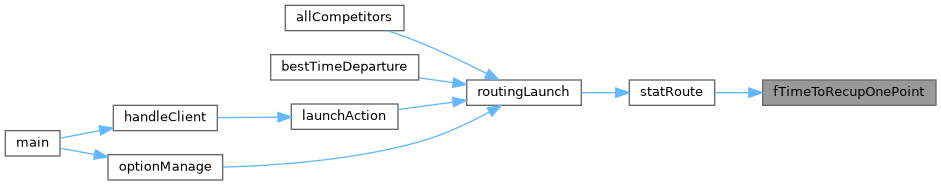

◆ fTimeToRecupOnePoint()

double fTimeToRecupOnePoint ( double tws )

for virtual Regatta.

return type in second to get back one energy point

Definition at line 1014 of file r3util.c.

References fTws(), and G_PI.

Referenced by statRoute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCoord()

double getCoord	(	const char *	str,
		double	minLimit,
		double	maxLimit
	)

translate str in double for latitude longitude

Definition at line 179 of file r3util.c.

References CLAMP.

Referenced by forbidZoneAdd(), readMarkCSVToJson(), and readParam().

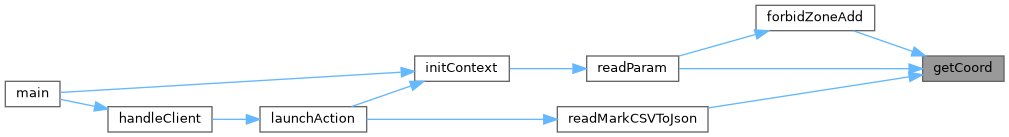

Here is the caller graph for this function:

◆ getDepartureTimeInHour()

double getDepartureTimeInHour ( struct tm * startUtc )

calculate difference in hours between departure time in UTC and time 0

Definition at line 420 of file r3util.c.

References Zone::dataDate, Zone::dataTime, gribDateTimeToEpoch(), and zone.

Here is the call graph for this function:

◆ getYMDHM()

static bool getYMDHM	(	long	dataDate,
		double	nHours,
		int *	yyyy,
		int *	mm,
		int *	dd,
		int *	hh,
		int *	min
	)

static

return year, month (1..12), day, hour, minutes from Grib dataDate and hours

Definition at line 328 of file r3util.c.

References bissextile().

Referenced by otherNewDate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gribDateTimeToEpoch()

time_t gribDateTimeToEpoch	(	long	date,
		long	hhmm
	)

convert long date/time from GRIB to time_t (UTC, via timegm)

Definition at line 408 of file r3util.c.

Referenced by checkParamAndUpdate(), getDepartureTimeInHour(), gribToStrJson(), infoCoordToJson(), optionManage(), timeIntersectGrib(), and zoneTimeDiff().

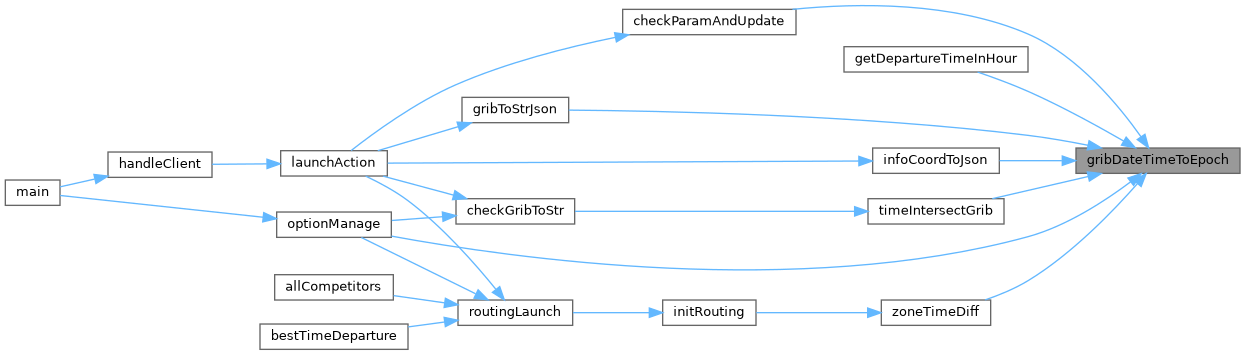

Here is the caller graph for this function:

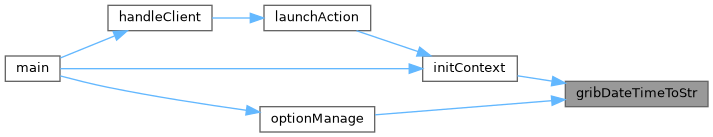

◆ gribDateTimeToStr()

char * gribDateTimeToStr	(	long	date,
		long	time,
		char *	str,
		size_t	maxLen
	)

return str representing grib date

Definition at line 276 of file r3util.c.

Referenced by initContext(), and optionManage().

Here is the caller graph for this function:

◆ gribDateToTm()

struct tm gribDateToTm	(	long	intDate,
		double	nHours
	)

return tm struct equivalent to date hours found in grib (UTC time) struct tm gribDateToTm (long intDate, double nHours) { struct tm tm0 = {0}; tm0.tm_year = (intDate / 10000) - 1900; tm0.tm_mon = ((intDate % 10000) / 100) - 1; tm0.tm_mday = intDate % 100; tm0.tm_isdst = -1;
const int totalMinutes = (int)(nHours * 60); tm0.tm_min += totalMinutes; // adjust tm0 struct (manage day, mon year overflow) mktime (&tm0);
return tm0; }

Definition at line 299 of file r3util.c.

Referenced by newDate(), newDateWeekDay(), and newDateWeekDayVerbose().

Here is the caller graph for this function:

◆ hasSlash()

bool hasSlash ( const char * name )

true if name terminates with slash

Definition at line 130 of file r3util.c.

References name.

Referenced by buildRootName(), checkParamAndUpdate(), initContext(), launchAction(), and mostRecentFile().

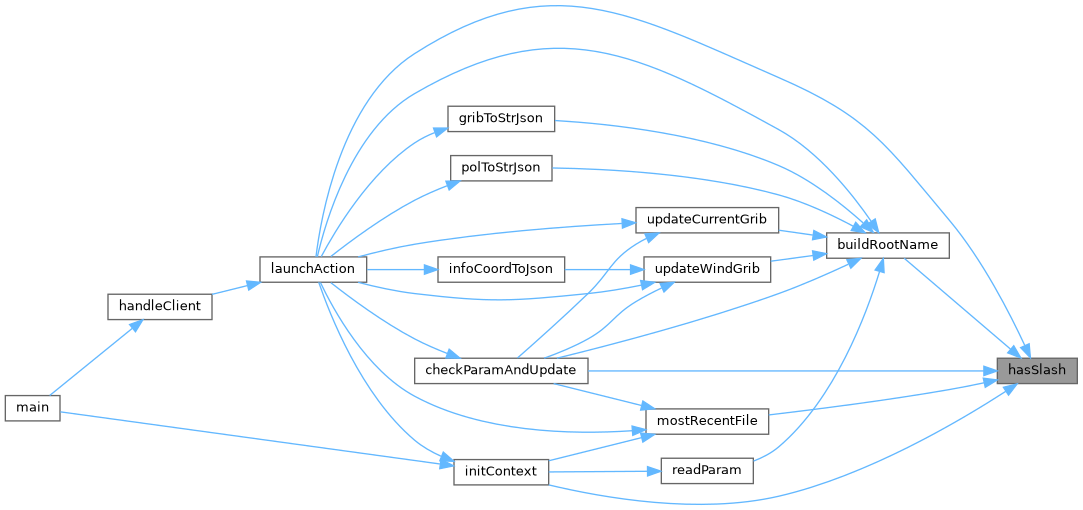

Here is the caller graph for this function:

◆ isEmpty()

bool isEmpty ( const char * str )

return true if str is empty

Definition at line 94 of file r3util.c.

References g_ascii_isspace().

Here is the call graph for this function:

◆ isInForbidArea()

static bool isInForbidArea	(	double	lat,
		double	lon
	)

static

return true if p is in forbid area

Definition at line 526 of file r3util.c.

References forbidZones, isInPolygon(), Par::nForbidZone, and par.

Referenced by updateIsSeaWithForbiddenAreas().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isInPolygon()

static bool isInPolygon	(	double	lat,
		double	lon,
		const MyPolygon *	po
	)

static

fill str with polygon information

return true if p is in polygon po Ray casting algorithm

Definition at line 512 of file r3util.c.

References Point::lat, Point::lon, MyPolygon::n, and MyPolygon::points.

Referenced by isInForbidArea().

Here is the caller graph for this function:

◆ isNumber()

bool isNumber ( const char * name )

true if name contains a number

Definition at line 174 of file r3util.c.

References name.

Referenced by strtodNew().

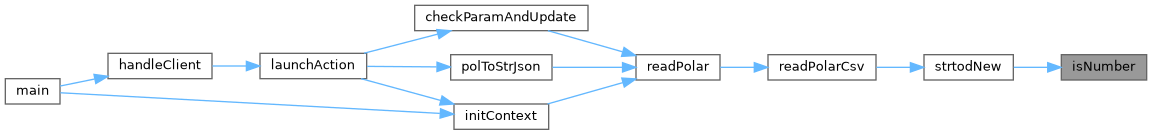

Here is the caller graph for this function:

◆ latToStr()

char * latToStr	(	double	lat,
		int	type,
		char *	str,
		size_t	maxLen
	)

convert lat to str according to type

Definition at line 440 of file r3util.c.

References BASIC, DD, DM, DMS, and g_strlcpy.

Referenced by gribToStr(), isoDescToStr(), logReport(), routeToStr(), and writeParam().

Here is the caller graph for this function:

◆ lonToStr()

char * lonToStr	(	double	lon,
		int	type,
		char *	str,
		size_t	maxLen
	)

convert lon to str according to type

Definition at line 462 of file r3util.c.

References BASIC, DD, DM, DMS, and g_strlcpy.

Referenced by gribToStr(), isoDescToStr(), logReport(), routeToStr(), and writeParam().

Here is the caller graph for this function:

◆ monotonic()

double monotonic ( void )

return seconds with decimals

Definition at line 1099 of file r3util.c.

Referenced by handleClient(), main(), and optionManage().

Here is the caller graph for this function:

◆ mostRecentFile()

bool mostRecentFile	(	const char *	directory,
		const char *	pattern0,
		const char *	pattern1,
		char *	name,
		size_t	maxLen
	)

select most recent file in "directory" that contains "pattern0" and "pattern1" in name return true if found with name of selected file

Definition at line 138 of file r3util.c.

References hasSlash(), MAX_SIZE_DIR_NAME, MAX_SIZE_FILE_NAME, and name.

Referenced by checkParamAndUpdate(), initContext(), and launchAction().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nearestPort()

int nearestPort	(	double	lat,
		double	lon,
		const char *	fileName,
		char *	res,
		size_t	maxLen
	)

return id and name of nearest port found in file fileName from lat, lon.

return empty string if not found

Definition at line 1063 of file r3util.c.

References g_strlcpy, g_strstrip(), MAX_SIZE_LINE, MAX_SIZE_NAME, and orthoDist().

Referenced by nearestPortToStrJson().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ newDate()

char * newDate	(	long	intDate,
		double	nHours,
		char *	res,
		size_t	maxLen
	)

return date and time using ISO notation after adding myTime (hours) to the Date

Definition at line 386 of file r3util.c.

References gribDateToTm().

Referenced by allCompetitors(), exportRouteToGpx(), gribToStr(), gribToStrJson(), logReport(), optionManage(), and routeToStr().

Here is the call graph for this function:

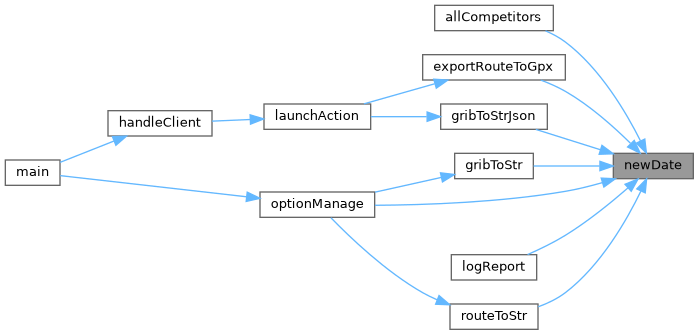

Here is the caller graph for this function:

◆ newDateWeekDay()

char * newDateWeekDay	(	long	intDate,
		double	nHours,
		char *	res,
		size_t	maxLen
	)

return date and time using week day after adding myTime (hours) to the Date

Definition at line 394 of file r3util.c.

References gribDateToTm().

Here is the call graph for this function:

◆ newDateWeekDayVerbose()

char * newDateWeekDayVerbose	(	long	intDate,
		double	nHours,
		char *	res,
		size_t	maxLen
	)

return date and time using week day after adding myTime (hours) to the Date

Definition at line 401 of file r3util.c.

References gribDateToTm().

Here is the call graph for this function:

◆ newFileNameSuffix()

char * newFileNameSuffix	(	const char *	fileName,
		const char *	suffix,
		char *	newFileName,
		size_t	maxLen
	)

replace former suffix (after last dot) by suffix example : "pol/bibi.toto.csv" with suffix "sailpol" will give: "pol/bibi.toto.sailpol"

Definition at line 78 of file r3util.c.

References g_strlcpy.

Referenced by readPolar().

Here is the caller graph for this function:

◆ normalizeSpaces()

void normalizeSpaces ( char * s )

replace multiple spaces by just one

Definition at line 1196 of file r3util.c.

Referenced by launchAction().

Here is the caller graph for this function:

◆ offsetLocalUTC()

double offsetLocalUTC ( void )

return offset Local UTC in seconds

Definition at line 263 of file r3util.c.

Referenced by optionManage().

Here is the caller graph for this function:

◆ otherNewDate()

char * otherNewDate	(	long	dataDate,
		double	nHours,
		char *	res,
		size_t	maxLen
	)

return date and time using ISO notation after adding myTime (hours) to the Date

Definition at line 376 of file r3util.c.

References getYMDHM().

Here is the call graph for this function:

◆ paramToStrJson()

char * paramToStrJson	(	Par *	par,
		char *	out,
		size_t	maxLen
	)

Return JSON formatted subset of parameters into 'out'.

Returns out on success, NULL on error or truncation.

Definition at line 1023 of file r3util.c.

References Par::currentGribFileName, g_path_get_basename(), Par::gribFileName, Par::isSeaFileName, Zone::latMax, Zone::latMin, Zone::lonLeft, Zone::lonRight, par, Par::polarFileName, Par::wavePolFileName, Par::workingDir, and zone.

Referenced by launchAction().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readIsSea()

bool readIsSea ( const char * fileName )

read issea file and fill table tIsSea

Definition at line 484 of file r3util.c.

References SIZE_T_IS_SEA, and tIsSea.

Referenced by initContext().

Here is the caller graph for this function:

◆ readMarkCSVToJson()

bool readMarkCSVToJson	(	const char *	fileName,
		char *	out,
		size_t	maxLen
	)

read CSV file marks (Virtual Regatta) if check then polarCheck

Definition at line 1144 of file r3util.c.

References g_strfreev(), g_strsplit(), g_strstrip(), getCoord(), MAX_LAT, MAX_LON, MAX_SIZE_TEXT, MAX_SIZE_TEXT_FILE, MIN_LAT, MIN_LON, and name.

Referenced by launchAction().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readParam()

bool readParam	(	const char *	fileName,
		bool	initDisp
	)

read parameter file and build par struct

Definition at line 573 of file r3util.c.

References Par::aisDisp, Par::allwaysSea, Par::authent, buildRootName(), CLAMP, Par::cliHelpFileName, Par::closestDisp, Par::cogStep, Competitor::colorIndex, competitors, Par::constCurrentD, Par::constCurrentS, Par::constWave, Par::constWindTwd, Par::constWindTws, Par::curlSys, Par::currentDisp, Par::currentGribFileName, Par::dashboardUTC, Par::dashboardVR, Par::dayEfficiency, Par::description, Par::dispDms, Par::dumpIFileName, Par::dumpRFileName, Pp::father, Par::feedbackFileName, Par::focalDisp, forbidZoneAdd(), g_strstrip(), getCoord(), Par::googleApiKey, Par::gribFileName, Par::gribResolution, Par::gribTimeMax, Par::gribTimeStep, Par::gridDisp, Par::helpFileName, Pp::id, Par::imapMailBox, Par::imapScript, Par::imapServer, Par::imapToSeen, Par::imapUserName, Par::indicatorDisp, Par::infoDisp, Par::isSeaFileName, Par::jFactor, Par::kFactor, Pp::lat, WayPoint::lat, Competitor::lat, Par::logFileName, Pp::lon, WayPoint::lon, Competitor::lon, Par::mailPw, Par::marksFileName, MAX_LAT, MAX_LON, MAX_N_COMPETITORS, MAX_N_FORBID_ZONE, MAX_N_SECTORS, MAX_N_SHP_FILES, MAX_N_WAY_POINT, MAX_SIZE_LINE, MAX_SIZE_NAME, MAX_SIZE_TEXT, Par::maxPoiVisible, Par::maxWind, Par::midFileName, MIN, MIN_LAT, MIN_LON, Par::mostRecentGrib, Par::motorSpeed, WayPointList::n, CompetitorsList::n, N_MAX_NMEA_PORTS, Competitor::name, Par::nForbidZone, Par::nightEfficiency, Par::nmea, Par::nNmea, Par::nSectors, Par::nShpFiles, Par::opt, par, Par::parInfoFileName, Par::pDest, Par::pDestName, Par::penalty0, Par::penalty1, Par::penalty2, Par::poiFileName, Par::polarFileName, Par::pOr, Par::pOrName, Par::portFileName, Par::portName, Par::python, Par::rangeCog, CompetitorsList::runIndex, Par::showColors, Par::shpFileName, Par::shpPointsDisp, Par::smtpScript, Par::smtpServer, Par::smtpTo, Par::smtpUserName, Par::special, Par::speed, Par::speedDisp, Par::staminaVR, Par::startTimeInHours, Par::stepIsocDisp, Par::storeMailPw, Par::style, CompetitorsList::t, WayPointList::t, Par::techno, Par::threshold, Par::tidesFileName, WayPointList::totLoxoDist, WayPointList::totOrthoDist, Par::traceFileName, Par::tStep, Par::waveDisp, Par::wavePolFileName, wayPoints, Par::web, Par::webkit, Par::windDisp, Par::windyApiKey, Par::withCurrent, Par::withWaves, Par::workingDir, Par::wpGpxFileName, and Par::xWind.

Referenced by initContext().

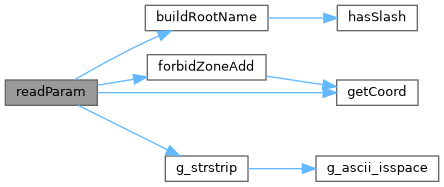

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readTextFile()

char * readTextFile	(	const char *	fileName,
		char *	errMessage,
		size_t	maxLen
	)

read all text file in buffer.

Allocate memory

Definition at line 1106 of file r3util.c.

Referenced by launchAction(), and readPolarJson().

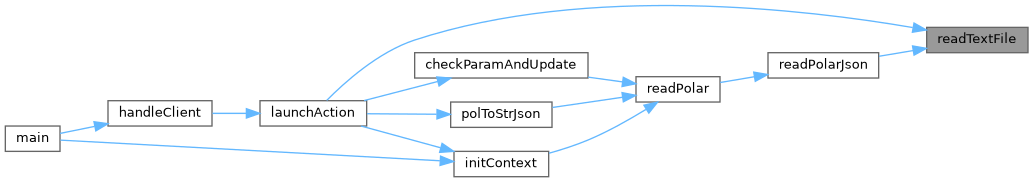

Here is the caller graph for this function:

◆ updateIsSeaWithForbiddenAreas()

void updateIsSeaWithForbiddenAreas ( void )

complement according to forbidden areas

Definition at line 534 of file r3util.c.

References isInForbidArea(), Par::nForbidZone, par, SIZE_T_IS_SEA, and tIsSea.

Referenced by initContext().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeParam()

bool writeParam	(	const char *	fileName,
		bool	header,
		bool	password,
		bool	yaml
	)

write parameter file from struct par header or not, password or not yaml style or not

Definition at line 826 of file r3util.c.

References Par::aisDisp, Par::allwaysSea, Par::authent, Par::cliHelpFileName, Par::closestDisp, Par::cogStep, Competitor::colorIndex, competitors, Par::constCurrentD, Par::constCurrentS, Par::constWave, Par::constWindTwd, Par::constWindTws, Par::curlSys, Par::currentDisp, Par::currentGribFileName, Par::dashboardUTC, Par::dashboardVR, Par::dayEfficiency, Par::description, Par::dispDms, Par::dumpIFileName, Par::dumpRFileName, Par::feedbackFileName, Par::focalDisp, forbidZones, fprintfNoNull(), fprintfNoZero(), Par::googleApiKey, Par::gribFileName, Par::gribResolution, Par::gribTimeMax, Par::gribTimeStep, Par::gridDisp, Par::helpFileName, Par::imapMailBox, Par::imapScript, Par::imapServer, Par::imapToSeen, Par::imapUserName, Par::indicatorDisp, Par::infoDisp, Par::isSeaFileName, Par::jFactor, Par::kFactor, Pp::lat, WayPoint::lat, Competitor::lat, latToStr(), Par::logFileName, Pp::lon, WayPoint::lon, Competitor::lon, lonToStr(), Par::mailPw, Par::marksFileName, MAX_SIZE_NAME, Par::maxPoiVisible, Par::maxWind, Par::midFileName, Par::mostRecentGrib, Par::motorSpeed, MyPolygon::n, WayPointList::n, CompetitorsList::n, Competitor::name, Par::nForbidZone, Par::nightEfficiency, Par::nmea, Par::nNmea, Par::nSectors, Par::nShpFiles, Par::opt, par, Par::parInfoFileName, Par::pDest, Par::pDestName, Par::penalty0, Par::penalty1, Par::penalty2, Par::poiFileName, Par::polarFileName, Par::pOr, Par::pOrName, Par::portFileName, Par::portName, Par::python, Par::rangeCog, Par::showColors, Par::shpFileName, Par::shpPointsDisp, Par::smtpScript, Par::smtpServer, Par::smtpTo, Par::smtpUserName, Par::special, Par::speed, Par::speedDisp, Par::staminaVR, Par::startTimeInHours, Par::stepIsocDisp, Par::style, CompetitorsList::t, WayPointList::t, Par::techno, Par::threshold, Par::tidesFileName, Par::traceFileName, Par::tStep, Par::waveDisp, Par::wavePolFileName, wayPoints, Par::web, Par::webkit, Par::windDisp, Par::windyApiKey, Par::withCurrent, Par::withWaves, Par::workingDir, Par::wpGpxFileName, and Par::xWind.

Referenced by launchAction().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ colorStr

const char* colorStr[] = {"green", "purple", "gray", "blue", "yellow", "orange", "red"}

Definition at line 40 of file r3util.c.

◆ competitors

CompetitorsList competitors

list of competitors

for competitors

Definition at line 46 of file r3util.c.

Referenced by allCompetitors(), checkParamAndUpdate(), launchAction(), readParam(), routeToJson(), routeToStr(), routing(), routingLaunch(), and writeParam().

◆ cShip

double cShip

Definition at line 23 of file r3util.c.

Referenced by fPenalty(), and fPointLoss().

◆ currentZone

Zone currentZone

Definition at line 65 of file r3util.c.

Referenced by checkGribToStr(), findCurrentGrib(), infoCoordToJson(), initContext(), initRouting(), optionManage(), testToJson(), and updateCurrentGrib().

◆ forbidZones

MyPolygon forbidZones[MAX_N_FORBID_ZONE]

forbid ones is a set of polygons

forbid zones

Definition at line 32 of file r3util.c.

Referenced by forbidToJson(), forbidZoneAdd(), isInForbidArea(), and writeParam().

◆ meteoTab

const struct MeteoElmt meteoTab[N_METEO_ADMIN] = {{7, "Weather service US"}, {78, "DWD Germany"}, {85, "Meteo France"}, {98,"ECMWF European"}}

dictionnary of meteo services

Meteo service.

Definition at line 35 of file r3util.c.

Referenced by gribToStr(), and gribToStrJson().

◆ name

char name[MAX_SIZE_NAME]

Definition at line 22 of file r3util.c.

Referenced by addSail(), checkParamAndUpdate(), decodeHttpReq(), gribToStr(), gribToStrJson(), hasSlash(), isNumber(), isPresentGrib(), listDirToStrJson(), mostRecentFile(), and readMarkCSVToJson().

◆ par

Par par

parameter

parameters desciption

Definition at line 58 of file r3util.c.

Referenced by allCompetitors(), bestTimeDeparture(), buildNextIsochrone(), buildRootName(), calcDuration(), checkParamAndUpdate(), exportRouteToGpx(), extractLevel(), findCurrentGrib(), findFlow(), findWindGrib(), forbidToJson(), forwardSectorOptimize(), goal(), goalP(), gribToStr(), handleClient(), infoCoordToJson(), initContext(), initRouting(), isCurrentTriplet(), isInForbidArea(), isoDescToStr(), launchAction(), logReport(), nearestPortToStrJson(), optionManage(), paramToStrJson(), readParam(), routeToJson(), routeToStr(), routing(), routingLaunch(), serveStaticFile(), shortNameFor(), simpleGoal(), simpleGoalP(), statRoute(), updateCurrentGrib(), updateIsSeaWithForbiddenAreas(), updateWindGrib(), and writeParam().

◆ polMat

PolMat polMat

polar matrix description

polar description

Definition at line 49 of file r3util.c.

Referenced by addSail(), buildNextIsochrone(), checkParamAndUpdate(), findListPol(), findSailPol(), fSailName(), goalP(), initContext(), optionManage(), readPolarJson(), and simpleGoalP().

◆ sailName

const char* sailName[] = {"C0", "HG", "Jib", "LG", "LJ", "Spi", "SS"}

Definition at line 39 of file r3util.c.

Referenced by findSailPol(), and readPolar().

◆ sailNameSize

const size_t sailNameSize = 7

sail attributes

Definition at line 38 of file r3util.c.

Referenced by readPolar().

◆ sailPolMat

PolMat sailPolMat

polar matrix for sails

Definition at line 52 of file r3util.c.

Referenced by buildNextIsochrone(), checkParamAndUpdate(), findListPol(), findSailPol(), goalP(), initContext(), optionManage(), readPolar(), readPolarJson(), and simpleGoalP().

◆ [struct]

struct { ... } shipParam[MAX_N_SHIP_TYPE]

Initial value:

= {
   {"Imoca", 1.2, {300, 300, 420}, {660, 660, 600}},
   {"Normal", 1.0, {300, 300, 336}, {660, 660, 480}}
}

Referenced by fPenalty(), and fPointLoss().

◆ tIsSea

char* tIsSea = NULL

table describing if sea or earth

Definition at line 61 of file r3util.c.

Referenced by buildNextIsochrone(), checkParamAndUpdate(), goal(), infoCoordToJson(), main(), optionManage(), readIsSea(), segmentOverSea(), simpleGoal(), and updateIsSeaWithForbiddenAreas().

◆ tMax

double tMax[3]

Definition at line 25 of file r3util.c.

Referenced by fPenalty(), and infoCoordToJson().

◆ tMin

double tMin[3]

Definition at line 24 of file r3util.c.

Referenced by fPenalty().

◆ wavePolMat

PolMat wavePolMat

polar matrix for waves

Definition at line 55 of file r3util.c.

Referenced by buildNextIsochrone(), checkParamAndUpdate(), goalP(), initContext(), optionManage(), and simpleGoalP().

◆ wayPoints

WayPointList wayPoints

list of wayPoint

Definition at line 43 of file r3util.c.

Referenced by checkParamAndUpdate(), logReport(), readParam(), routingLaunch(), and writeParam().

◆ zone

Zone zone

geographic zone covered by grib file

Zone description.

Definition at line 64 of file r3util.c.

Referenced by allCompetitors(), buildInitialOfShortNameList(), buildNextIsochrone(), buildUVGWarray(), checkGrib(), checkGribInfoToStr(), checkGribToStr(), checkParamAndUpdate(), consistentGrib(), find4PointsAround(), findFlow(), findTimeAround(), findTimeIndex(), findWindGrib(), getDepartureTimeInHour(), goalP(), gribToStr(), idxTij(), indexOf(), indLat(), indLat(), indLat(), indLon(), indLon(), indLonWrap(), infoCoordToJson(), initContext(), initRouting(), isInZone(), isPresentGrib(), launchAction(), logReport(), optionManage(), paramToStrJson(), printGrib(), readGribAll(), readGribLists(), readGribParameters(), routeToJson(), routing(), simpleGoalP(), statRoute(), testToJson(), timeStepRegularGrib(), updateWindGrib(), and uvPresentGrib().

Macros

Functions

Variables

Macro Definition Documentation

◆ MAX_N_SHIP_TYPE

Function Documentation

◆ bissextile()

◆ buildRootName()

◆ durationToStr()

◆ epochToStr()

◆ forbidZoneAdd()

◆ formatThousandSep()

◆ fPenalty()

◆ fPointLoss()

◆ fprintfNoNull()

◆ fprintfNoZero()

◆ fSailName()

◆ fTimeToRecupOnePoint()

◆ getCoord()

◆ getDepartureTimeInHour()

◆ getYMDHM()

◆ gribDateTimeToEpoch()

◆ gribDateTimeToStr()

◆ gribDateToTm()

◆ hasSlash()

◆ isEmpty()

◆ isInForbidArea()

◆ isInPolygon()

◆ isNumber()

◆ latToStr()

◆ lonToStr()

◆ monotonic()

◆ mostRecentFile()

◆ nearestPort()

◆ newDate()

◆ newDateWeekDay()

◆ newDateWeekDayVerbose()

◆ newFileNameSuffix()

◆ normalizeSpaces()

◆ offsetLocalUTC()

◆ otherNewDate()

◆ paramToStrJson()

◆ readIsSea()

◆ readMarkCSVToJson()

◆ readParam()

◆ readTextFile()

◆ updateIsSeaWithForbiddenAreas()

◆ writeParam()

Variable Documentation

◆ colorStr

◆ competitors

◆ cShip

◆ currentZone

◆ forbidZones

◆ meteoTab

◆ name

◆ par

◆ polMat

◆ sailName

◆ sailNameSize

◆ sailPolMat

◆ [struct]

◆ tIsSea

◆ tMax

◆ tMin

◆ wavePolMat

◆ wayPoints

◆ zone
