engine.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
bool	storeRoute (SailRoute *route, const Pp *pOr, const Pp *pDest)
	store route response false if error
bool	isoDescToStr (char *str, size_t maxLen)
	copy isoc Descriptors in a string true if enough space, false if truncated
bool	routeToStr (const SailRoute *route, char *str, size_t maxLen, char *footer, size_t maxLenFooter)
	copy route in a string true if enough space, false if truncated
void *	routingLaunch ()
	launch routing with parameters
void *	bestTimeDeparture ()
	choose best time to reach pDest in minimum time
void *	allCompetitors ()
	launch all competitors
void	freeHistoryRoute ()
	free space for history route
void	logReport (int n)
	log one CSV line report.
void	saveRoute (SailRoute *route)
	store current route in history
bool	exportRouteToGpx (const SailRoute *route, const char *filename)
	export route with GPX format
bool	dumpIsocToFile (const char *fileName)
	write in CSV file Isochrones

Variables
Pp *	isocArray
	global variables
IsoDesc *	isoDesc
int	nIsoc
int	maxNIsoc
Pp	lastClosest
ChooseDeparture	chooseDeparture
HistoryRouteList	historyRoute
SailRoute	route
	store sail route calculated in engine.c by routing

Function Documentation

allCompetitors()

void * allCompetitors ( )

extern

launch all competitors

Definition at line 1331 of file engine.c.

References competitors, Zone::dataDate, Zone::dataTime, Competitor::dist, Competitor::duration, SailRoute::duration, EXIST_SOLUTION, g_atomic_int_get(), g_atomic_int_set(), g_strlcpy, Pp::lat, Competitor::lat, Pp::lon, Competitor::lon, MAX_SIZE_DATE, CompetitorsList::n, Competitor::name, newDate(), NO_SOLUTION, orthoDist(), par, Par::pDest, Par::pOr, CompetitorsList::ret, SailRoute::ret, route, ROUTING_STOPPED, routingLaunch(), CompetitorsList::runIndex, saveRoute(), Par::startTimeInHours, STOPPED, Competitor::strETA, CompetitorsList::t, and zone.

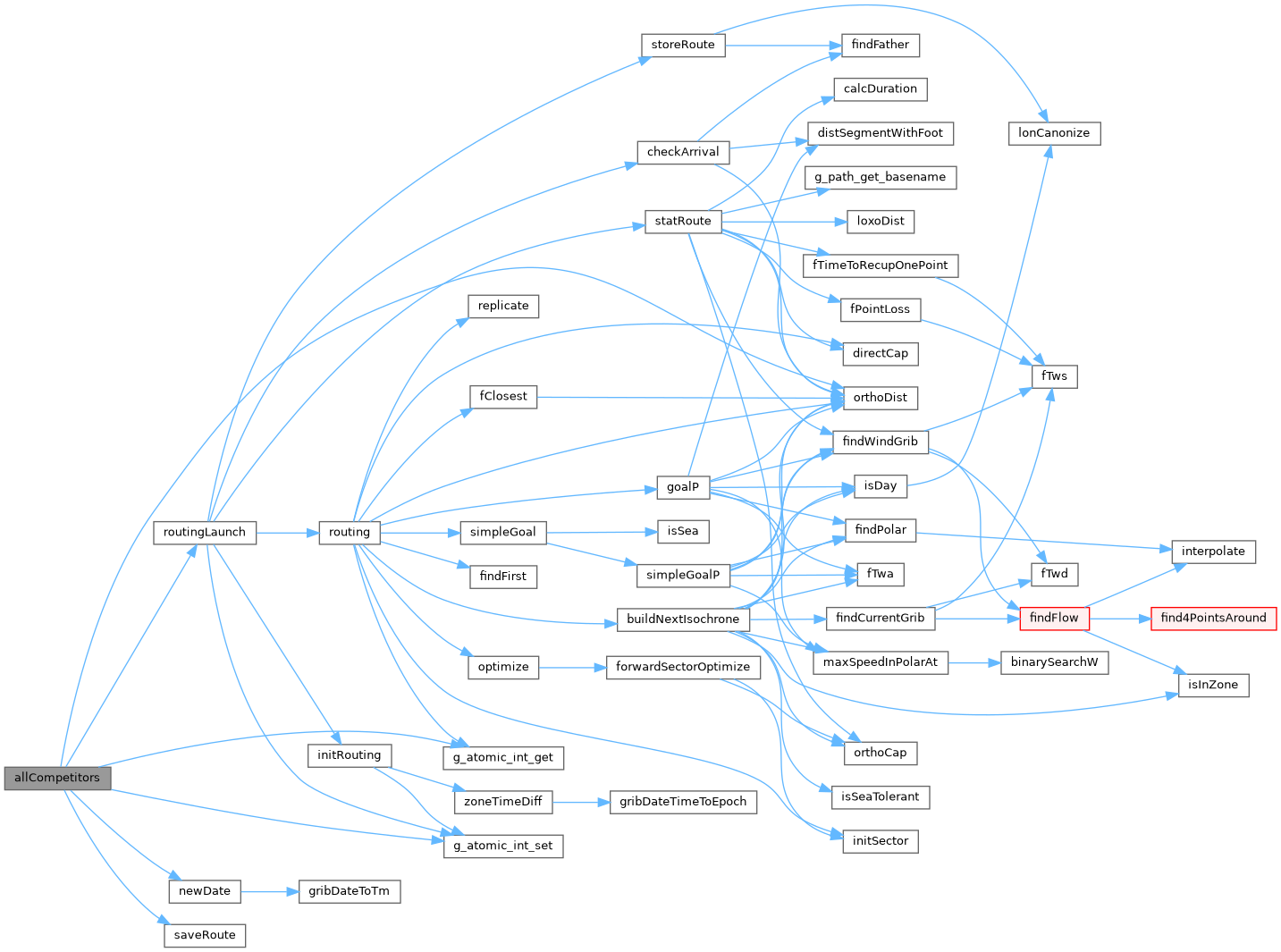

Here is the call graph for this function:

bestTimeDeparture()

void * bestTimeDeparture ( )

extern

choose best time to reach pDest in minimum time

Definition at line 1269 of file engine.c.

References ChooseDeparture::bestCount, ChooseDeparture::bestTime, chooseDeparture, ChooseDeparture::count, SailRoute::duration, EXIST_SOLUTION, g_atomic_int_get(), g_atomic_int_set(), MAX_N_INTERVAL, MAX_UNREACHABLE, ChooseDeparture::maxDuration, ChooseDeparture::minDuration, NIL, NO_SOLUTION, par, ChooseDeparture::ret, SailRoute::ret, route, ROUTING_STOPPED, routingLaunch(), Par::startTimeInHours, STOPPED, ChooseDeparture::t, ChooseDeparture::tBegin, ChooseDeparture::tEnd, ChooseDeparture::tInterval, and ChooseDeparture::tStop.

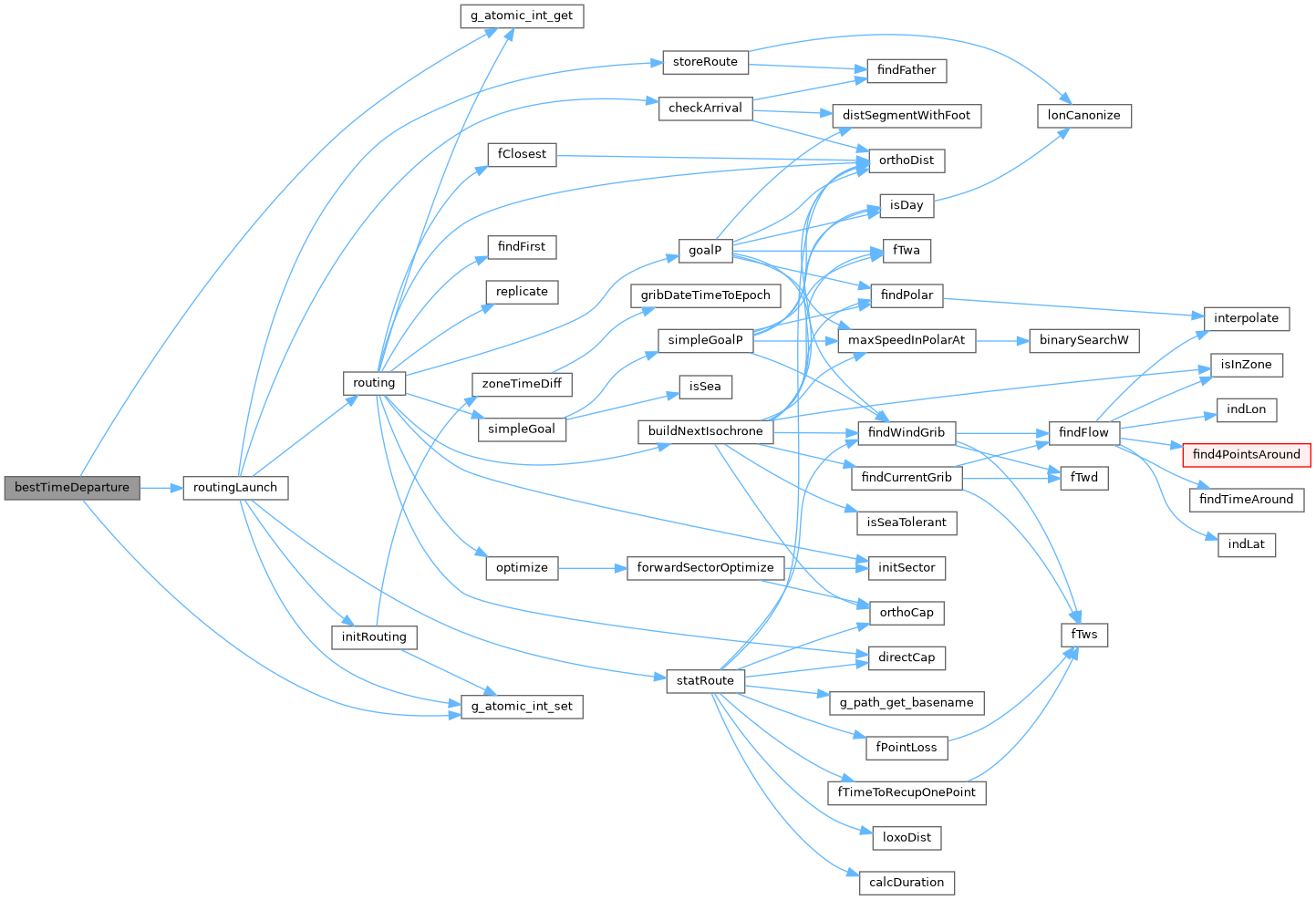

Here is the call graph for this function:

dumpIsocToFile()

bool dumpIsocToFile ( const char *  fileName )

extern

write in CSV file Isochrones

Definition at line 356 of file engine.c.

References Pp::amure, Pp::dd, Pp::father, Pp::id, isocArray, isoDesc, Pp::lat, Pp::lon, MAX_SIZE_ISOC, Pp::motor, nIsoc, Pp::sail, IsoDesc::size, Pp::toIndexWp, and Pp::vmc.

exportRouteToGpx()

bool exportRouteToGpx ( const SailRoute *  route, const char *  filename  )

extern

export route with GPX format

Definition at line 1420 of file engine.c.

References SailRoute::dataDate, SailRoute::dataTime, Pp::lat, SailPoint::lat, Pp::lon, SailPoint::lon, MAX_SIZE_DATE, SailRoute::n, newDate(), SailPoint::oCap, par, Par::pDest, PROG_NAME, route, SailPoint::sog, Par::startTimeInHours, SailRoute::t, and SailPoint::time.

Referenced by launchAction().

Here is the call graph for this function:

Here is the caller graph for this function:

freeHistoryRoute()

void freeHistoryRoute ( )

extern

free space for history route

Definition at line 405 of file engine.c.

References historyRoute, HistoryRouteList::n, and HistoryRouteList::r.

isoDescToStr()

bool isoDescToStr ( char *  str, size_t  maxLen  )

extern

copy isoc Descriptors in a string true if enough space, false if truncated

Definition at line 330 of file engine.c.

References Par::dispDms, g_strlcat, g_strlcpy, isoDesc, latToStr(), lonToStr(), MAX_SIZE_LINE, nIsoc, and par.

Here is the call graph for this function:

logReport()

void logReport ( int  n )

extern

log one CSV line report.

n is the number of competitors

Definition at line 1370 of file engine.c.

References Zone::dataDate, Zone::dataTime, SailRoute::destinationReached, Par::dispDms, SailRoute::duration, g_path_get_basename(), Par::gribFileName, lastClosest, Pp::lat, latToStr(), Par::logFileName, Pp::lon, lonToStr(), MAX_SIZE_DATE, MAX_SIZE_LINE, MAX_SIZE_NAME, WayPointList::n, newDate(), SailPoint::oCap, orthoDist(), par, Par::pDest, Par::polarFileName, Par::pOr, route, Par::startTimeInHours, SailRoute::t, Par::tStep, wayPoints, and zone.

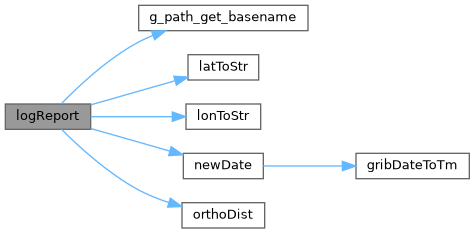

Here is the call graph for this function:

routeToStr()

bool routeToStr ( const SailRoute *  route, char *  str, size_t  maxLen, char *  footer, size_t  maxLenFooter  )

extern

copy route in a string true if enough space, false if truncated

Definition at line 627 of file engine.c.

References SailPoint::amure, SailRoute::avrTws, SailRoute::competitorIndex, competitors, SailRoute::dataDate, SailRoute::dataTime, Par::dispDms, SailRoute::duration, durationToStr(), fAwaAws(), fSailName(), fTwa(), SailPoint::g, g_strlcat, g_strlcpy, SailRoute::isocTimeStep, SailPoint::lat, latToStr(), SailPoint::lCap, SailPoint::lon, lonToStr(), MAX_SIZE_DATE, MAX_SIZE_LINE, MAX_SIZE_NAME, SailRoute::maxTws, SailPoint::motor, SailRoute::motorDist, motorTribordBabord(), MS_TO_KN, SailRoute::n, Competitor::name, SailRoute::nAmureChange, newDate(), SailRoute::nSailChange, SailPoint::oCap, SailPoint::od, par, SailRoute::polarFileName, route, SailPoint::sail, SMALL_SIZE, SailPoint::sog, SailPoint::stamina, Par::startTimeInHours, CompetitorsList::t, SailRoute::t, SailPoint::time, SailPoint::toIndexWp, SailRoute::totDist, SailPoint::twd, SailPoint::tws, and SailPoint::w.

Referenced by optionManage().

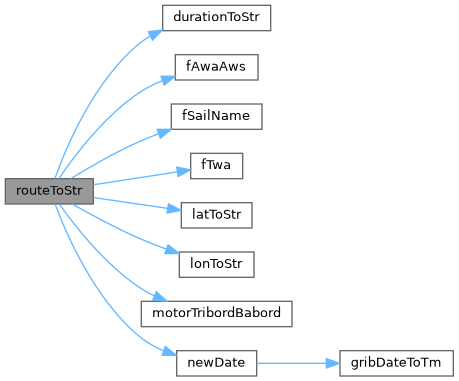

Here is the call graph for this function:

Here is the caller graph for this function:

routingLaunch()

void * routingLaunch ( )

extern

launch routing with parameters

Definition at line 1192 of file engine.c.

References Pp::amure, IsoDesc::bestVmc, IsoDesc::biggestOrthoVmc, SailRoute::calculationTime, checkArrival(), IsoDesc::closest, SailRoute::competitorIndex, competitors, SailRoute::destinationReached, Pp::father, IsoDesc::first, IsoDesc::focalLat, IsoDesc::focalLon, g_atomic_int_set(), Pp::id, initRouting(), isocArray, isoDesc, lastClosest, SailRoute::lastStepDuration, SailRoute::lastStepWpDuration, Pp::lat, WayPoint::lat, Pp::lon, WayPoint::lon, MAX_SIZE_ISOC, MILLION, WayPointList::n, Competitor::name, nIsoc, SailRoute::nWayPoints, par, Par::pDest, pId, Par::pOr, SailRoute::ret, route, routing(), ROUTING_ERROR, CompetitorsList::runIndex, IsoDesc::size, Par::startTimeInHours, statRoute(), storeRoute(), CompetitorsList::t, WayPointList::t, IsoDesc::toIndexWp, Par::tStep, and wayPoints.

Referenced by allCompetitors(), bestTimeDeparture(), launchAction(), and optionManage().

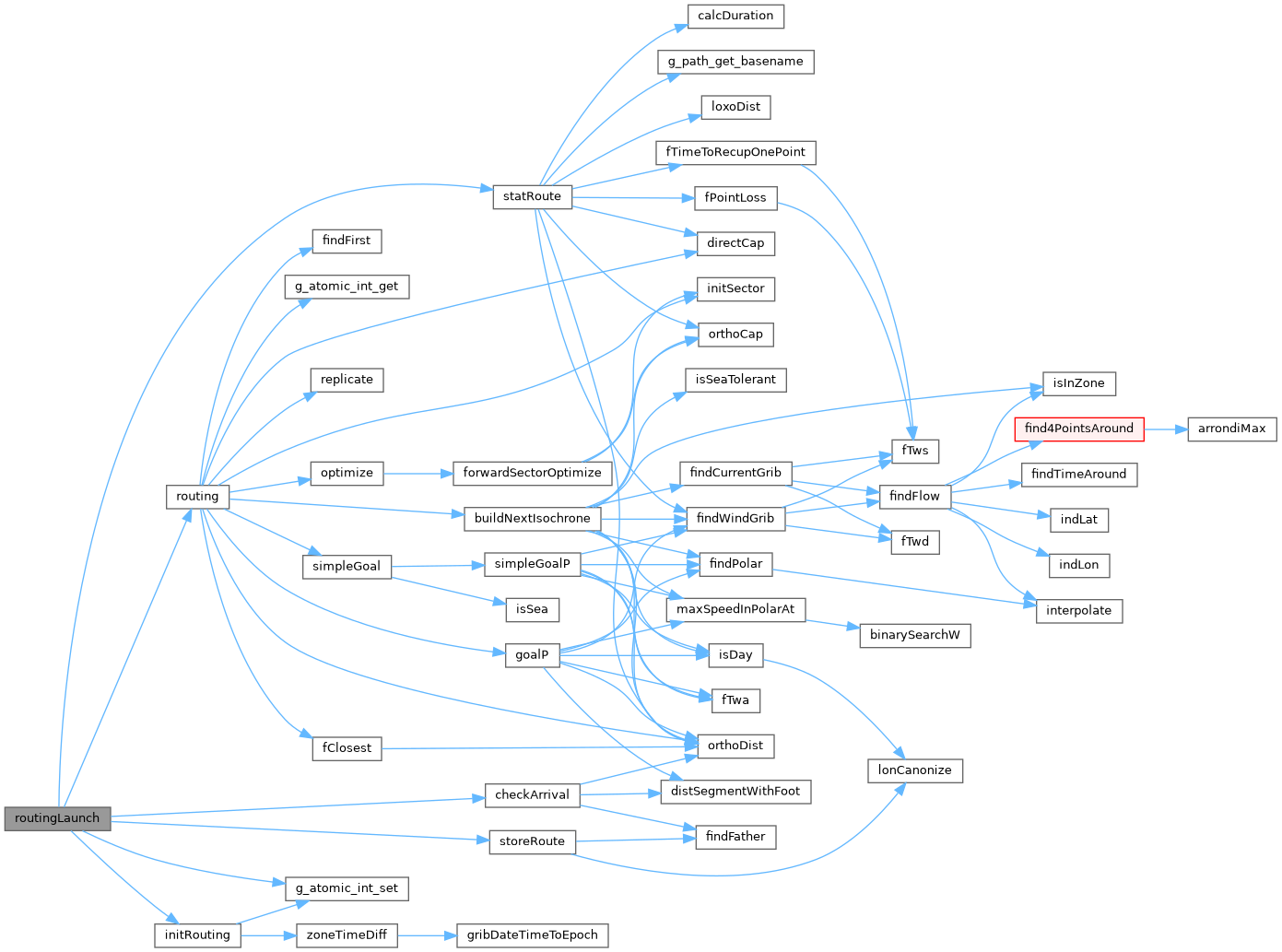

Here is the call graph for this function:

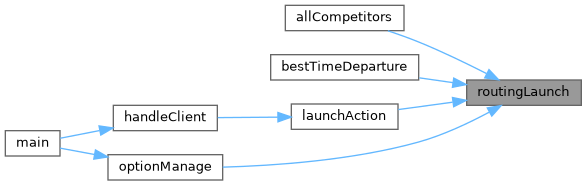

Here is the caller graph for this function:

saveRoute()

void saveRoute ( SailRoute *  route )

extern

store current route in history

Definition at line 378 of file engine.c.

References historyRoute, MAX_N_HISTORY, HistoryRouteList::n, SailRoute::nIsoc, HistoryRouteList::r, route, and SailRoute::t.

Referenced by allCompetitors().

Here is the caller graph for this function:

storeRoute()

bool storeRoute ( SailRoute *  route, const Pp *  pOr, const Pp *  pDest  )

extern

store route response false if error

Definition at line 561 of file engine.c.

References Pp::amure, SailPoint::amure, Pp::father, SailPoint::father, findFather(), Pp::id, SailPoint::id, isocArray, isoDesc, Pp::lat, SailPoint::lat, Pp::lon, SailPoint::lon, lonCanonize(), MAX_SIZE_ISOC, Pp::motor, SailPoint::motor, SailRoute::n, nIsoc, SailRoute::nIsoc, SailRoute::nWayPoints, route, Pp::sail, SailPoint::sail, IsoDesc::size, SailRoute::t, Pp::toIndexWp, and SailPoint::toIndexWp.

Referenced by routingLaunch().

Here is the call graph for this function:

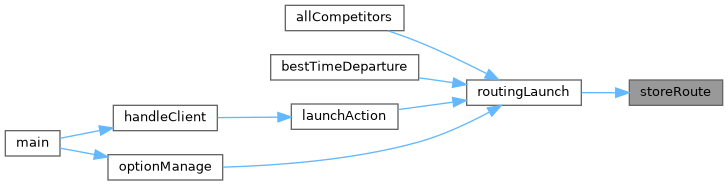

Here is the caller graph for this function:

Variable Documentation

chooseDeparture

ChooseDeparture chooseDeparture

extern

Definition at line 42 of file engine.c.

Referenced by bestTimeDeparture().

historyRoute

HistoryRouteList historyRoute

extern

Definition at line 40 of file engine.c.

Referenced by freeHistoryRoute(), and saveRoute().

isocArray

Pp* isocArray

extern

global variables

Definition at line 32 of file engine.c.

Referenced by checkArrival(), dumpIsocToFile(), findFather(), findFirst(), initRouting(), isochronesToStrCatJson(), main(), replicate(), routing(), routingLaunch(), and storeRoute().

isoDesc

IsoDesc* isoDesc

extern

Definition at line 33 of file engine.c.

Referenced by checkArrival(), dumpIsocToFile(), findFirst(), forwardSectorOptimize(), initRouting(), isochronesToStrCatJson(), isoDescToStr(), isoDescToStrCatJson(), main(), replicate(), routeToJson(), routing(), routingLaunch(), and storeRoute().

lastClosest

Pp lastClosest

extern

Definition at line 36 of file engine.c.

Referenced by initRouting(), logReport(), routing(), and routingLaunch().

maxNIsoc

int maxNIsoc

extern

Definition at line 34 of file engine.c.

Referenced by initRouting(), and routing().

nIsoc

int nIsoc

extern

Definition at line 35 of file engine.c.

Referenced by dumpIsocToFile(), findFirst(), forwardSectorOptimize(), initContext(), initRouting(), initSector(), isochronesToStrCatJson(), isoDescToStr(), isoDescToStrCatJson(), optimize(), routing(), routingLaunch(), and storeRoute().

route

SailRoute route

extern

store sail route calculated in engine.c by routing

Definition at line 39 of file engine.c.

Referenced by allCompetitors(), bestTimeDeparture(), calcDuration(), checkArrival(), checkRoute(), exportRouteToGpx(), initContext(), initRouting(), launchAction(), logReport(), main(), optionManage(), routeToJson(), routeToStr(), routing(), routingLaunch(), saveRoute(), statRoute(), and storeRoute().
